Shop All Spur Gears
Martin Sprocket & Gear

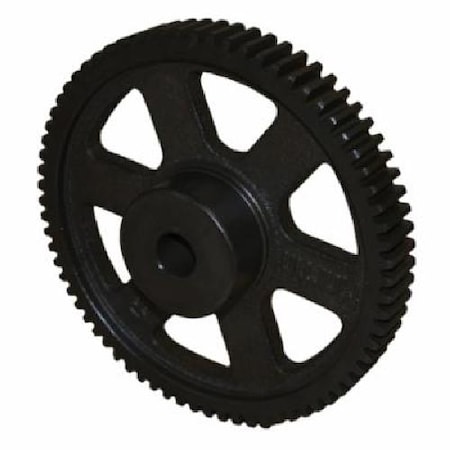

Gear Spur 14 1/2 Deg Cast, C1278

Hover or click to zoom Tap to zoom
Key Features
  • Pitch: 12
  • Pitch Dia. (In.): 6.5
  • Face Width (In.): 0.75
  • Outside Dia. (In.): 6.666
  • Material: Cast Iron
  • Hub Projection (In.): 0.75
  • Weight: 4.12
  • Pressure Angle (Deg.): 14.5
See full product details
$158.50
Join our email list for 10% off your first order
For 10% Off Your First Order
Free Shipping on $50+ Orders
No-Hassle, 30-Day Returns 30-Day Returns
125 U.S.-Based Customer Service Agents 125 U.S.-Based Customer Service Agents

Martin Sprocket & Gear #C1278 Specifications

  • Pitch: 12
  • Pitch Dia. (In.): 6.5
  • Face Width (In.): 0.75
  • Outside Dia. (In.): 6.666
  • Material: Cast Iron
  • Hub Projection (In.): 0.75
  • Weight: 4.12
  • Pressure Angle (Deg.): 14.5
  • Hub Dia. (In.): 2.4845
  • Number Of Teeth: 78
  • Storage Length: 6.666
  • Min. Bore: 0.75
  • Bore Type: Reboreable
  • Storage Height: 1.5
  • Storage Width: 6.666
  • Gear Type: B3
  • Class: 6
  • Max. Bore: 1.4375
  • Length through Bore: 1.5
  • Hub Style: B
  • Country of Origin (subject to change): United States
