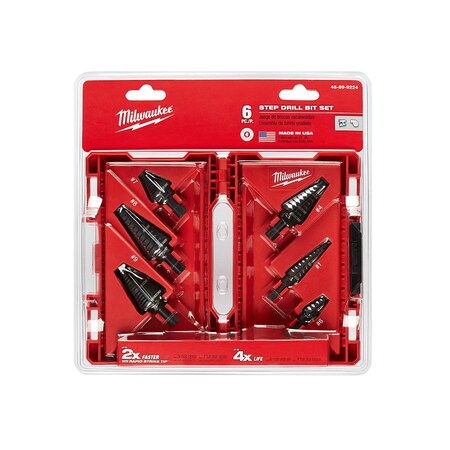

Step Drill Bit Set - 6PC

  • Zoro #: G7618441
  • Mfr #: 48-89-9224
$224.99
  • Promotion Restriction: Not eligible for promotion
  • Item: Step Drill Bit Set
  • Measurement System: Fractional Inch
See full product details
This item ships free.

Milwaukee #48-89-9224 Specifications

  • Zoro #: G7618441
  • Mfr #: 48-89-9224
  • Promotion Restriction: Not eligible for promotion
  • Item: Step Drill Bit Set
  • Measurement System: Fractional Inch
  • Material - Machining: High Speed Steel
  • Finish - Machining: Black Oxide
  • Cutting Direction: Right Hand
  • Primary Material Application: Steel, Plastic
  • Overall Length: 2 in, 2 3/16 in, 2 15/16 in, 3 in, 3 1/16 in, 3 5/16 in
  • Material: High Speed Steel
  • Size Range: 1/8 in to 1 1/8 in
  • Drill Bit Dimension Type: Fractional Inch
  • Number of Pieces: 6
  • Step Thickness: 1/8 in, 5/32 in, 3/16 in
  • Number of Hole Sizes: 39
  • Finish: black oxide
  • Sizes Included: 7/8", 1-1/8"; 7/8"; 1/2", 9/16", 5/8", 11/16", 3/4", 13/16", 7/8", 15/16", 1"; 3/8", 1/2"; 3/16", 1/4", 5/16", 3/8", 7/16", 1/2", 9/16", 5/8", 11/16", 3/4", 13/16", 7/8"; 1/8", 5/32", 3/16", 7/32", 1/4", 9/32", 5/16", 11/32", 3/8", 13/32", 7/16", 15/32", 1/2"
  • Shank Size: 1/4 in, 3/8 in
  • Bit Length: 2-1/32", 2-13/64", 2-61/64", 3-7/64", 3", 3-21/64"
  • Shank Shape: Three-Flat
  • Drill Bit Finish: Black Oxide
  • Drill Bit Sizes Included: 1/8 in, 3/16 in, 1/4 in, 5/16 in, 3/8 in, 7/16 in, 1/2 in, 9/16 in, 5/8 in, 11/16 in, 3/4 in, 13/16 in, 7/8 in, 15/16 in, 1 in, 1 1/16 in, 1 1/8 in
  • Includes: 48-89-9201 (1/8 in to 1/2 in x 1/32 in), 48-89-9204 (3/16 in to 7/8 in x 1/16 in), 48-89-9206 (3/8 in ,1/2 in x 1/16 in), 48-89-9207 (7/8 in Single Hole), 48-89-9208(1/2 in to 1 in x 1/16 in), 48-89-9209 (7/8 in , 1-1/8 in), Hard Plastic Case
  • Shank Type: Hex
  • Impact Rated: No
  • Drill Bit Material: High Speed Steel
  • Number of Flutes: 2
  • Decimal Equivalent: 0.125, 0.1875, 0.25, 0.3125, 0.375, 0.4375, 0.5, 0.5625, 0.6875, 0.8125, 0.875, 0.9375, 1, 1.0625, 1.125
  • Maximum Hole Size: 1 1/8 in
  • Shank Type - Machining: Straight with Three Flats
  • Sub Brand: Secure Grip(TM)
  • Flute Type: Spiral
  • Number Hole Sizes: 39
  • Largest Drill Bit Size: 1 1/8 in
  • Drill Bit Point Type: Conventional Point
  • Drill Bit Case Type: Plastic
  • Number of Drill Bits: 6
  • Shank Diameter: 1/4 in, 3/8 in
  • Smallest Drill Bit Size: 1/8 in
  • Minimum Hole Size: 1/8 in
  • Country of Origin (subject to change): United States
Feedback Help us improve our product information

Description

Milwaukee® Step drill bits with jam-free performance feature a dual-flute design delivering up to 2X faster hole times, up to 4X longer life and up to 50% more holes per battery charge than competitors. Ideal for drilling small and large-diameter holes in steel and plastic, these bits are optimized for cordless drills in high speed. The Rapid Strike™ tip allows for a fast and accurate start that generates less heat, resulting in longer bit tip life. Black oxide coating also enhances durability, hole quality and bit life. For user convenience and accuracy, each bit has laser-engraved reference marks you can see while drilling. The 3-flat Secure-Grip™ shank ensures a solid connection with the drill chuck. The step drill bit 6-piece set includes bits #1 (48-89-9201), #4 (48-89-9204), #6 (48-89-9206), #7 (48-89-9207), #8 (48-89-9208) and #9 (48-89-9209). Jam-free performance in high speed with most professional 18 Volt cordless drills with lithium-ion battery technology.
