Exhaust Fan Kit, 12 In Dia, 2900 CFM, 120 V
  • Zoro #: G0250887
  • Mfr #: 7HY24
$579.19
  • Watts: 410
  • Standards: UL Recognized Motor (E219656)
  • Full Load Amps: 3.45
See full product details
This item ships free.

Multifan #7HY24 Specifications

  • Zoro #: G0250887
  • Mfr #: 7HY24
Watts: 410 Standards: UL Recognized Motor (E219656)
Full Load Amps: 3.45 CFM @ 0.050-In. SP: 2850
Hz: 60 Item: Corrosion Resistant Exhaust Fan Kit
Fan Voltage: 120VAC Mounting Position: Vertical or Horizontal
Motor Enclosure: Totally Enclosed Air Over CFM @ 0.000-In. SP: 2900
Phase: 1 Max. Ambient Temperature: 140 Degrees F
Motor RPM: 3250 Bearing Type: Sealed Ball
Outside Dia.: 5-3/8" Speed Control: 1DGZ5
Number of Blades: 6 Assembled/Unassembled: Unassembled
Blade Material: Polypropylene Exhaust/Supply Fan Motor HP: 3/8

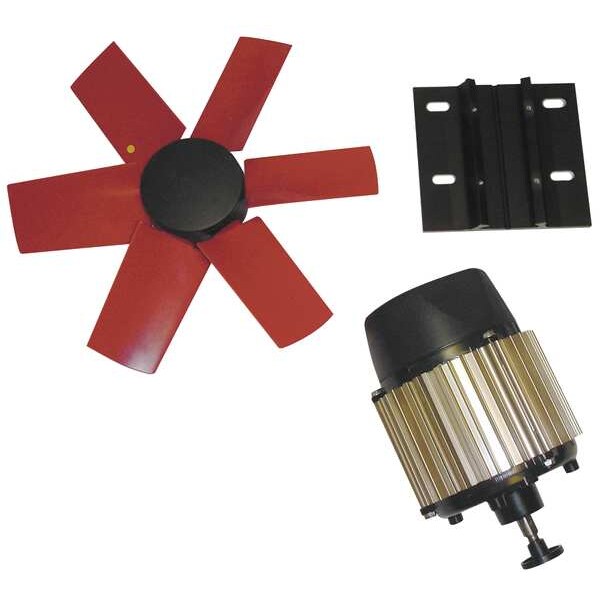

Includes: Propeller, Direct Drive Motor and 56 Frame Motor Mount dBA @ 7 Feet: 61
Depth: 7-3/4" Drive Package Included: No
Blade Dia.: 12" Motor Type: Permanent Split Capacitor
Exhaust/Supply Fan Item: Exhaust Fan CFM @ 0.125-In. SP: 2775
Motor Insulation: Class F Country of Origin (subject to change): Multiple
Feedback Help us improve our product information

Description

Corrosion Resistant Exhaust Fan Kit, 1 Phase, Blade Dia. 12 In., Number of Blades 6, Motor RPM 3250, Full Load Amps 3.45, Fan Voltage 120VAC, Exhaust/Supply Fan Motor HP 3/8, 60 Hz, Assembled/Unassembled Unassembled, CFM @ 0.000-In. SP 2900, CFM @ 0.050-In. SP 2850, CFM @ 0.125-In. SP 2775, dBA @ 7 Feet 61, Max. Ambient Temperature 140 Degrees F, Motor Type Permanent Split Capacitor, Motor Enclosure Totally Enclosed Air Over, Motor Insulation Class F, Bearing Type Sealed Ball, Watts 410
