  6. Air/Hydraulic Axle Jack, Steel, 22 tons

This item is Discontinued.

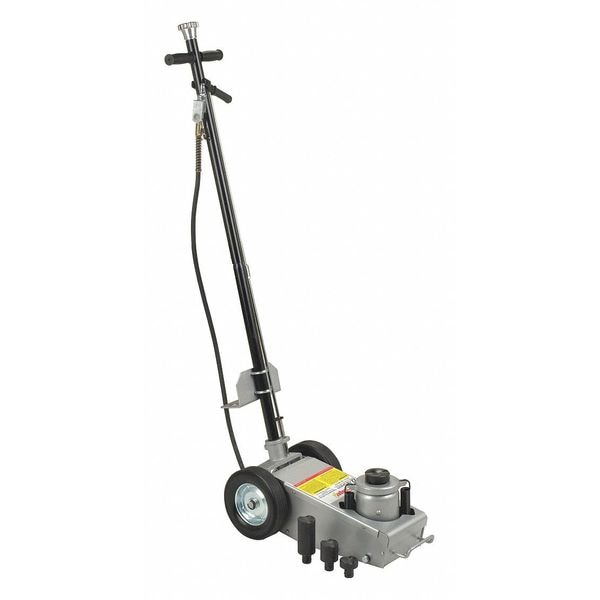

Otc Air/Hydraulic Axle Jack, Steel, 22 tons 1788B

Air/Hydraulic Axle Jack, Steel, 22 tons (Discontinued)

  • Mfr # 1788B
  • Zoro # G3962677
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
1788B
Zoro #
G3962677
UPC #
731413579875
Country of Origin
China

Dimensions

Lifting Height Max.
20 5/8 in
Lifting Height Min.
8 1/4 in
Base Height
8 1/4 in
Base Length
28 1/2 in
Chassis Length
28 1/2 in
Base Width
14 in
Caster Wheel Dia.
4 in
Handle Length
49 1/2 in
Chassis Width
14 in
Chassis Height
8 9/32 in
Extended Height
69 87/100 in
Minimum Lift Height
8 1/4 in
Maximum Lift Height
20 5/8 in
Wheel Diameter
7 7/8 in
Overall Width
11 45/64 in

Details

Item
Air/Hydraulic Axle Jack
Lifting Capacity
22 ton
Includes
3 Attachments for Adjusting Height Application, Handle Has Position Control Rod and Lever
Operation Type
Manual
Handle Material
Steel
Number of Casters
2
Material
Steel
Application
General
Power Raise
20 5/8 in
For Lifting
Heavy Duty Vehicles
Handle Type
T-Handle
Minimum Lift
8 1/4 in
Duty Rating
Extra-Heavy Duty
Power Source
Mechanical
Jack Type
Under Axle Jack
Body Material
Steel
Features
3 Position Handle Makes it Easy to Position Under Vehicles with Low Overhangs, Chrome Plated Ram for Additional Rust Resistance, Dependable Double Spring Return Lowers Piston Ram Quickly with No Load, Large Rear Wheels Provide Positioning and Portability, Welded Hydraulic Pump and Cylinder Construction Provides Increased Strength and Leak Prevention, Wide Rugged Base Adds Stability and Strength, Wiper Seals Protect Hydraulic System From Contaminants
Maximum Operating Pressure
145 psi
Load Capacity
22 ton
Maximum Lift
20 5/8 in
Stroke
4 1/2 in
Number of Wheels
2
Minimum Operating Pressure
90 psi

Description

Air/Hydraulic Axle Jack, Jack Type Under Axle Jack, Load Capacity 22 ton, Body Material Steel, Minimum Lift Height 8 1/4 in, Maximum Lift Height 20 5/8 in, Power Source Mechanical, For Lifting Heavy Duty Vehicles, Chassis Height 8 9/32 in, Chassis Length 28 1/2 in, Chassis Width 14 in, Extended Height 69 87/100 in
