  9. Remodeling Fan, Pick-A-Flow CFM, 110 cfm, 50 cfm, 80 cfm cfm, 4 in Duct Dia., 120V, No
Panasonic

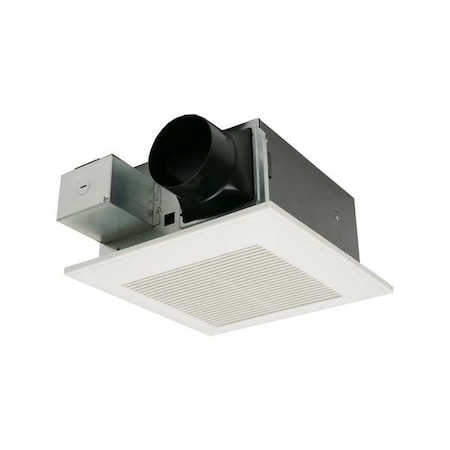

Remodeling Fan, Pick-A-Flow CFM, 110 cfm, 50 cfm, 80 cfm cfm, 4 in Duct Dia., 120V, No

Panasonic Remodeling Fan, Pick-A-Flow CFM, 110 cfm, 50 cfm, 80 cfm cfm, 4 in Duct Dia., 120V, No FV-0511VF1
Hover or click to zoom Tap to zoom
$142.68
  • Promotion Restriction: Not eligible for promotion
  • Voltage: 120V
  • CFM @ 0.100-In. SP: 110 cfm, 50 cfm, 80 cfm
See full product details
This item ships free.
Total: $142.68

Panasonic #FV-0511VF1 Specifications

  • Promotion Restriction: Not eligible for promotion
  • Voltage: 120V
  • CFM @ 0.100-In. SP: 110 cfm, 50 cfm, 80 cfm
  • Includes: Plastic Alignment Guides, Retaining Clip
  • Phase: 1
  • Watts: 10.2 W, 4.0 W, 5.9 W
  • Duct Dia.: 4 in
  • Amps: 0.29
  • Housing Material: Steel
  • Number of Speeds: 3
  • Sones @ 0.100-In. SP @ 5 Ft.: 0.3, 0.8, Less Than 0.3
  • Lighted: No
  • Profile: Low
  • Standards: ASHRAE 62.2, ENERGY STAR Certified, IAP and California Title 24, ISO 9001 Certified, LEED, UL Listed
  • Motor Enclosure: Totally Enclosed
  • Green Environmental Attribute: Product Contributes To Reducing Energy Consumption
  • Grille Material: Polypropylene
  • Housing Height: 5 3/5 in
  • Housing Length: 10 1/4 in
  • Hz: 60 Hz
  • Nominal RPM: 795 RPM, 820 RPM, 997 RPM
  • Discharge: Vertical
  • Night-Light: No
  • Item: Remodeling Fan, Pick-A-Flow CFM
  • Requires: Ductwork
  • Housing Width: 10 1/4 in
  • Grille Width: 13 in
  • Grille Length: 13 in
  • Nameplate Voltage: 120V AC
  • Exhaust Airflow @ 0.250 in SP: 50 cfm, 51 cfm, 80 cfm, 81 cfm, 94 cfm, 111 cfm
  • Overall Height: 15 5/8 in
  • Includes Light Bulbs: No
  • For Cut-Out Length: 10 1/2 in
  • Noise Level @ 0.250 in SP @ 5 ft: 1.5 sones
  • Noise Level @ 0.000 in SP @ 5 ft: 2 sones
  • Overall Width: 13 in
  • Exhaust Airflow @ 0.100 in SP: 110 cfm
  • Overall Depth: 5 5/8 in
  • For Cut-Out Width: 10 1/2 in
  • Discharge Direction: Vertical
  • Vent Design: Ducted
  • Overall HxWxD: 15 5/8 in x 13 in x 5 5/8 in
  • Sensor Type: None
  • Frequency: 60 Hz
  • Includes Grill: Yes
  • Duct Shape: Round
  • Noise Level @ 0.100 in SP @ 5 ft: 0.8 sones
  • Full Load Current: 0.08 A, 0.09 A, 0.11 A, 0.13 A, 0.14 A, 0.15 A, 0.16 A, 0.17 A, 0.18 A, 0.21 A, 0.22 A, 0.24 A, 0.26 A, 0.27 A, 0.28 A, 0.29 A
  • Duct Diameter: 4 in
  • Profile Height Family: Low
  • Maximum Noise Level: 2 sones
  • Country of Origin (subject to change): Mexico

Description

Remodeling Fan, Pick-A-Flow CFM, Discharge Direction Vertical, Duct Diameter 4 in, Duct Shape Round, Housing Material Steel, Includes Plastic Alignment Guides, Retaining Clip, Mounting Location Ceiling, Exhaust Airflow @ 0.100 in SP 110 cfm, Maximum Noise Level 2 sones, Noise Level @ 0.100 in SP @ 5 ft 0.8 sones, Number of Speeds 3, Overall Depth 5 5/8 in, Overall Height 15 5/8 in, Overall Width 13 in, Lighted Without Light, Phase 1
