Ranco

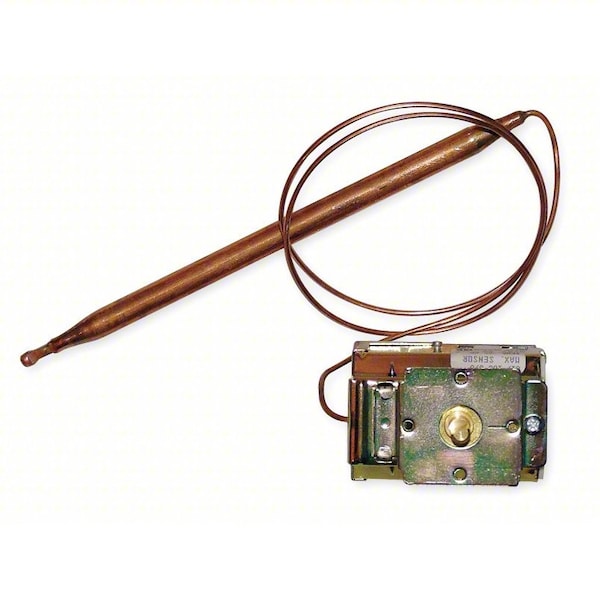

Line Volt Mechanical Tstat, Open/Close on Rise, On Unit, SPDT

Ranco Line Volt Mechanical Tstat,  Open/Close on Rise,  On Unit,  SPDT C17-100
Hover or click to zoom Tap to zoom
$161.87
  • Switch Action: Open/Close on Rise
  • Voltage: 120/240V
  • Sensor Type: Copper
  • Differential: 3.5 Degrees F
  • Thermostat Control Range: 64 Degrees to 101 Degrees F
  • Mounting Location: On Unit
  • Switch Type: SPDT
  • Color: -
See full product details
This item ships free.

Total: $161.87

Ranco #C17-100 Specifications

  • Switch Action: Open/Close on Rise
  • Voltage: 120/240V
  • Sensor Type: Copper
  • Differential: 3.5 Degrees F
  • Thermostat Control Range: 64 Degrees to 101 Degrees F
  • Mounting Location: On Unit
  • Switch Type: SPDT
  • Color: -
  • Width: 2 1/4 in
  • Height: 3 in
  • Locked Rotor Amps @ 240V: -
  • Contact Rating Resistive @ 120V: 25 A
  • Remote Sensing Capability: Yes
  • Control Range: 64 Degrees to 94 Degrees F (Heating), 71 Degrees to 101 Degrees F (Cooling)
  • Thermostat Programmable: No
  • Contact Rating Resistive @ 277V: 16 A
  • Thermostat Item: Line Voltage Mechanical Thermostat
  • Includes: -
  • Resistive Amps @ 208VAC: 25 A
  • Standards: None
  • Item: Line Volt Mechanical Tstat
  • Locked Rotor Amps @ 120V: -
  • Full Load Amps @ 240VAC: 15 A
  • Thermostat Switch Type: SPDT
  • Thermostat Voltage: 120 to 277V AC
  • Sensing Bulb Length: 8 9/16 in
  • Sensing Bulb Dia.: 3/8 in
  • Thermostat Heating/Cooling: Heating/Cooling
  • Pilot Duty Contacts (VA): 240 VA
  • Number of Switches: 2
  • Enclosure Type: None
  • Remote Sensing Bulb Included: Yes
  • Inductive Amps @ 120V: 20 A
  • Full Load Amps @ 120VAC: 15 A
  • Inductive Amps @ 240V: 20 A
  • Depth: 3 in
  • Capillary Length: 24 in
  • Mounting Type: Any Position
  • For Use With: 2-Stage Heat/Cool PTAC and Thru the Wall Units
  • Type: Remote Bulb Temperature Control
  • Contact Rating: 125 to 277V
  • Full Load Amps @ 240V AC: 20 A
  • Pilot Duty Rating: 240 VA @ 125 to 277V AC
  • Number of Poles: 1
  • Mounting Direction: Horizontal, Vertical
  • Overall Depth: 3 in
  • Overall Width: 2 1/4 in
  • Temperature Scale: Fahrenheit
  • Changeover Type: Manual
  • Overall Height: 3 in
  • Temperature Control Range: 64 Degrees to 101 Degrees F
  • Temp. Differential High (F): 3.5 Degrees F
  • Bulb Dia. (In.): 3/8 in
  • Bulb Diameter: 3/8 in
  • Maximum Control Temperature: 101 Degrees F
  • Bulb Length: 8 9/16 in
  • Resistive Amps @ 208V AC: 25 A
  • Number of Heating Stages: 1
  • Defrost Termination: 64 Degrees to 101 Degrees F
  • Sensor Location: Remote
  • Differential Type: Adjustable, Fixed
  • Number of Cooling Stages: 1
  • Switch Type/Action: SPDT, Open/Close on Rise
  • Temperature Differential: 3.5 Degrees F
  • Stages: 1H/1C
  • Full Load Amps @ 120V AC: 15 A
  • Minimum Control Temperature: 64 Degrees F
  • Capillary Length/Bulb Diameter: 2 1/6 ft Capillary, 8 9/16 in x 3/8 in Bulb
  • Enclosure Material: Steel
  • Country of Origin (subject to change): Mexico

Description

Line Volt Mechanical Tstat, Thermostat Switch Type SPDT, Thermostat Control Range 64 Degrees to 101 Degrees F, Thermostat Voltage 120 to 277V AC, Full Load Amps @ 120VAC 15 A, Full Load Amps @ 240VAC 15 A, Thermostat Programmable No, Remote Sensing Capability Yes, Thermostat Heating/Cooling Heating/Cooling, Remote Sensing Bulb Included Yes, Switch Action Open/Close on Rise, Number of Switches 2, Differential 3.5 Degrees F, Height 3 in, Width 2 1/4 in, Depth 3 in, Sensor Type Copper
