Reelcraft

Hose Reel, Air/Water

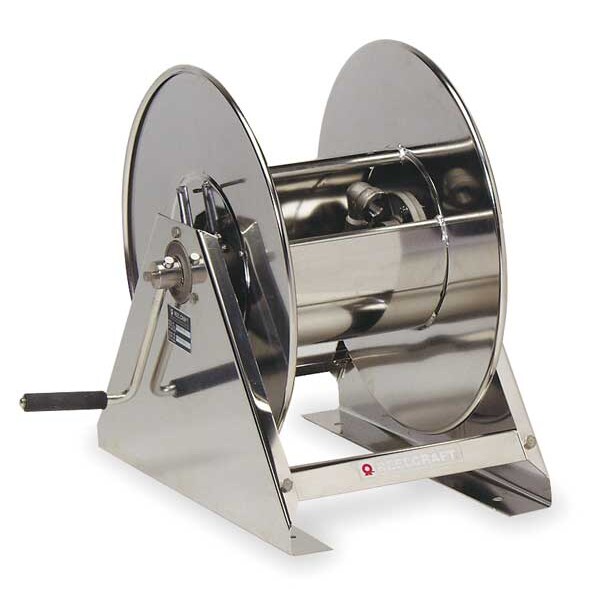

Reelcraft Hose Reel, Air/Water HS18000 M
Hover or click to zoom Tap to zoom
$1,167.88
  • Hose Included: No
  • Hose Length: 200 ft
  • Hose Inside Dia.: 1/2 in
See full product details
This item ships free.
Total: $1,167.88

Reelcraft #HS18000 M Specifications

  • Hose Included: No
  • Hose Length: 200 ft
  • Hose Inside Dia.: 1/2 in
  • Reel Inlet: 1/2 in (F)NPT
  • Hose Outlet: 1/2 in (F)NPT
  • Finish: Unpolished
  • Duty Rating: Medium Duty
  • Drive Type: Hand Crank
  • Housing Material: Stainless steel
  • Overall Width: 18 1/4 in
  • Bearings: Permanently Lubricated
  • HP: None
  • Swivel Material: Stainless Steel
  • Hose Outside Dia.: 1/2 in
  • Seal Type: Viton(R)
  • Item: Hand Crank Hose Reel
  • Max. Temp. Rating: 210 Degrees F
  • Max. Pressure Rating: 3000 psi
  • Mounting: Bench, Floor, Truck, Wall
  • Overall Height: 19 in
  • Overall Length: 20 in
  • Includes: Instructions
  • Features: Chemical Transfer and Industrial-Solvent Handling., Ideal For Food Processing, Pre-Rinse, Wash Down
  • Weight: 36 lb
  • Reel Width: 9 5/8 in
  • Number of Mount Holes: 4
  • Base Motion Type: Stationary
  • Mounting Hole Center to Center Height: 10 in
  • Mount Base Width: 12 1/2 in
  • Mounting Hole Center to Center Width: 15 in
  • Swivel Inlet Thread Size: 1/2 in - 14
  • Hose Reel Primary Application: Air, Diesel, Garden, Gasoline, Hydraulic Oil, Oil, Pre-Rinse, Pressure Washer, Washdown, Water
  • Swivel Outlet Gender: Male
  • Hose Reel Type: Free Standing Hose Reel, Vehicle Mount Hose Reel, Wall Mount Hose Reel
  • Swivel Inlet Size: 1/2 in
  • Hose Capacity: 200 ft (1/2 in I.D.)
  • Mount Base Height: 20 in
  • Handle Length: 3 3/4 in
  • Includes Leader Hose: No
  • Fasteners Included: No
  • For Dual Hose: No
  • Swivel Outlet Thread Size: 1/2 in - 14
  • Swivel Outlet Type: NPT
  • Swivel Inlet Gender: Female
  • Reel Diameter: 8 in
  • Reel Material: Stainless Steel
  • Seal Material: FKM
  • Reel Color: Silver
  • Bearing Construction: Permanently Lubricated
  • Enclosed: No
  • Reel Finish: Polished
  • Overall Dimensions: 20 in L x 18 1/4 in W x 19 in H
  • Maximum Operating Temperature: 210 Degrees F
  • Includes Hose: No
  • Latch Type: Locking
  • Minimum Operating Temperature: -20 Degrees F
  • Swivel Inlet Type: NPT
  • Swivel Outlet Size: 1/2 in
  • Includes Gooseneck: Yes
  • Maximum Operating Pressure: 3,000 psi
  • Mount Hole Diameter: 7/16 in
  • Country of Origin (subject to change): China

Description

Hand Crank Hose Reel, Air, Diesel, Garden, Gasoline, Hydraulic Oil, Oil, Pre-Rinse, Pressure Washer, Washdown, Water, Hose Capacity 200 ft (1/2 in I.D.), 3,000 psi, Overall Height 19 in, Overall Length 20 in, Overall Width 18 1/4 in, Reel Material Stainless Steel, Reel Finish Polished, Drive Type Hand Crank, Enclosed No, Includes Hose No, Mounting Location Bench, Floor, Truck, Wall, Reel Color Silver, Includes Gooseneck Yes
