Live Center, 1/2 In Tracer Point, 5MT

RITEN| Zoro #: G1237546| Mfr #: 44905

$387.00 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G1237546 Mfr #: 44905
Included Angle (Deg.): 60Construction: Alloy Steel Point And Body
Function: Sealed Bearings, Point Through-Hardened To 61-63 RcDimension F (In.): -
Dimension V2 (Deg.): -Item: Live Center
Type: Turning And GrindingPoint Type: Tracer Point
Morse Taper: 5 MTWeight of Workpiece (Lb.): 900
Max. RPM: 2500Bearings: Tri-Bearing Design

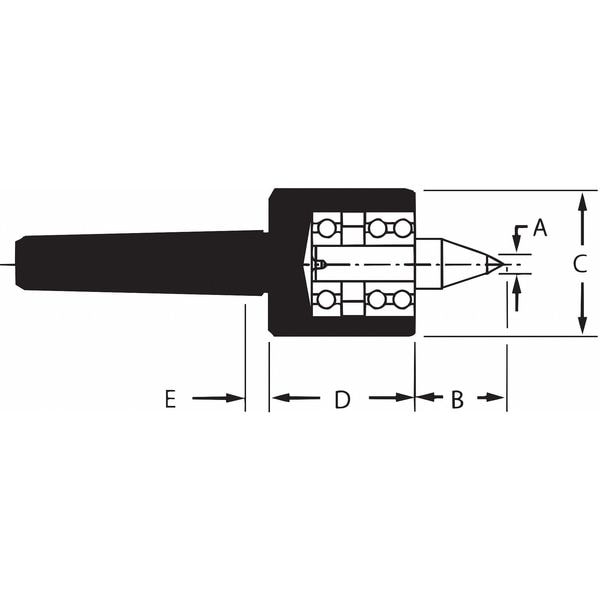

Accuracy: +/-0.0002"Dimension A (In.): 1/2
Dimension A2 (In.): -Dimension B (In.): 2
Dimension C (In.): 2-3/8Dimension D (In.): 2-1/4
Dimension E (In.): 1/4Dimension G (In.): -
Dimension I (In.): -Dimension K (In.): -
Dimension T (In.): -Dimension P (In.): -
Dimension L (In.): -Dimension H (In.): -
Dimension V (Deg.): -Country of Origin (subject to change): United States

Product Description

Live Center, Turning And Grinding, Tracer Point, 5 MT, Weight of Workpiece 900 Lb, Max RPM 2500, Alloy Steel Point And Body, Tri-Bearing Design, Included Angle 60 Deg, Accuracy +/-0.0002 In, Sealed Bearings, Point Through-Hardened To 61-63 Rc
