Live Center, 2 1/2 In Pipe Nose, 4MT

RITEN| Zoro #: G1202144| Mfr #: 65254

$525.00 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G1202144 Mfr #: 65254
Dimension H (In.): -Dimension L (In.): -
Dimension P (In.): -Included Angle (Deg.): 60
Dimension T (In.): -Construction: Alloy Steel Point And Body
Function: For Use In Machining Pipe, Tubing And Other Thin-Wall Work-PiecesDimension F (In.): -
Dimension V2 (Deg.): -Item: Live Center
Type: Large BorePoint Type: Pipe Nose
Morse Taper: 4 MTWeight of Workpiece (Lb.): 260
Max. RPM: -Bearings: Dual-Bearing Design

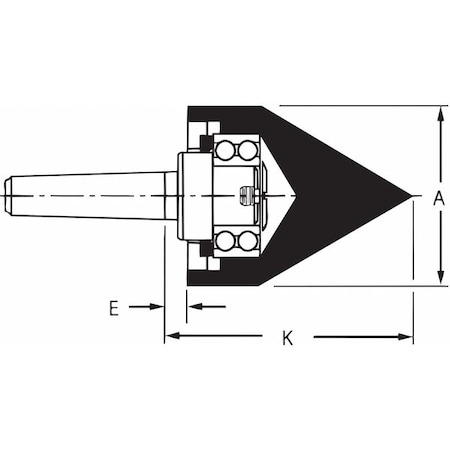

Accuracy: +/-0.00025"Dimension A (In.): 2-1/2
Dimension A2 (In.): -Dimension B (In.): -
Dimension C (In.): -Dimension D (In.): -
Dimension E (In.): 5/16Dimension G (In.): -
Dimension I (In.): -Dimension K (In.): 3-3/4
Dimension V (Deg.): -Thrust Rating (Lb.): -
Country of Origin (subject to change): United States

Product Description

Live Center, Large Bore, Pipe Nose, 4 MT, Weight of Workpiece 260 Lb, Alloy Steel Point And Body, Dual-Bearing Design, Included Angle 60 Deg, Accuracy +/-0.00025 In, For Use In Machining Pipe, Tubing And Other Thin-Wall Work-Pieces
