Balanced Collar, 1pc Clamp, Balanced, Bore 40mm, Anodized Aluminum

  • Zoro #: G3397618
  • Mfr #: MSPB-40-A
$66.54
  • Country of Origin (subject to change): United States
See full product details
Orders over $75 ship free.

Ruland Manufacturing #MSPB-40-A Specifications

  • Zoro #: G3397618
  • Mfr #: MSPB-40-A
  • Country of Origin (subject to change): United States
Feedback Help us improve our product information

Description

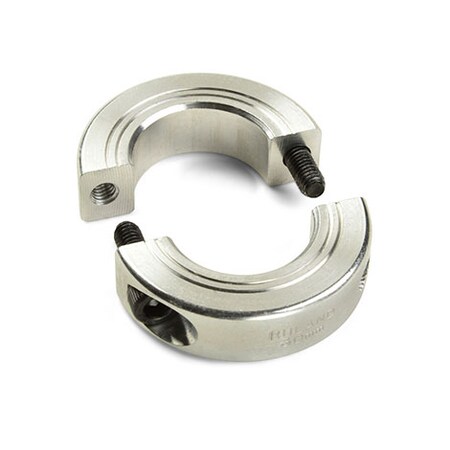

Ruland clamp style shaft collars do not mar the shaft, are infinitely adjustable, and have superior holding power when compared to set screw collars. This two-piece shaft collar has a 40mm bore, 60mm OD, and 15mm width. It has a balanced design for better performance in high RPM applications. Tightly controlled face to bore perpendicularity is maintained (TIR of < 0.05mm) which is critical when the collar is used as a load bearing face, mechanical stop, or for component alignment. The work surface is identified by two grooves on the face allowing the user to easily identify which side is precision faced. The two-piece design allows this collar to be installed or serviced in-place without the need to remove adjacent components. Halves are mated throughout the manufacturing process for precise fit and increased holding power. This collar is stamped with the Ruland name and bore size for ease of identification. It is manufactured from high strength 2025 aluminum to a fine burr-free finish for increased screw seating torque. Hardware tests beyond DIN 912 12.9 standards for maximum holding power. It is RoHS and REACH compliant.

Restrictions and Compliance

This item has been restricted from sale in the following states: No
