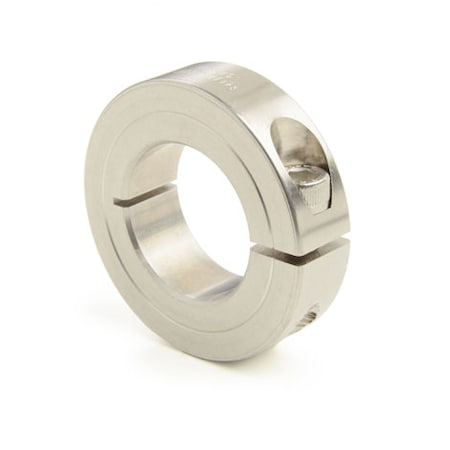

Shaft Collar, 1pc Clamp, Bore 23mm, OD45mm, 316 Stainless Steel, MCL-23-ST

Ruland Manufacturing Shaft Collar, 1pc Clamp, Bore 23mm, OD45mm, 316 Stainless Steel, MCL-23-ST MCL-23-ST
Tap to zoom
Hover or click to zoom
$137.36
  • Bore Dia.: 23 mm
  • Material: 316 Stainless Steel
  • Outside Dia.: 45 mm
See full product details
This item ships free.

Total: $137.36

Ruland Manufacturing #MCL-23-ST Specifications

  • Bore Dia.: 23 mm
  • Material: 316 Stainless Steel
  • Outside Dia.: 45 mm
  • Width: 15 mm
  • Operating Temp. Range: -40°F to 350°F (-40°C to 176°C)
  • Clearance Dia.: 52.1 mm
  • Screw Material: 316 Stainless Steel
  • Weight: 0.2956lbs
  • System of Measurement: Metric
  • Country of Origin (subject to change): United States

Description

Ruland clamp style shaft collars do not mar the shaft, are infinitely adjustable, and have superior holding power when compared to set screw collars. This one-piece shaft collar has a 23mm bore, 45mm OD, and 15mm width. Tightly controlled face to bore perpendicularity is maintained (TIR of < 0.05mm) which is critical when the collar is used as a load bearing face, mechanical stop, or for component alignment. The work surface is identified by two grooves on the face allowing the user to easily identify which side is precision faced. This collar is stamped with the Ruland name and bore size for ease of identification. It is manufactured from 316 stainless steel to a fine burr-free finish with hardware of like material for consistent corrosion resistance. Hardware tests beyond DIN 912 12.9 standards for maximum holding power. It is RoHS and REACH compliant.

Restrictions and Compliance

  • This item has been restricted from sale in the following states: No
