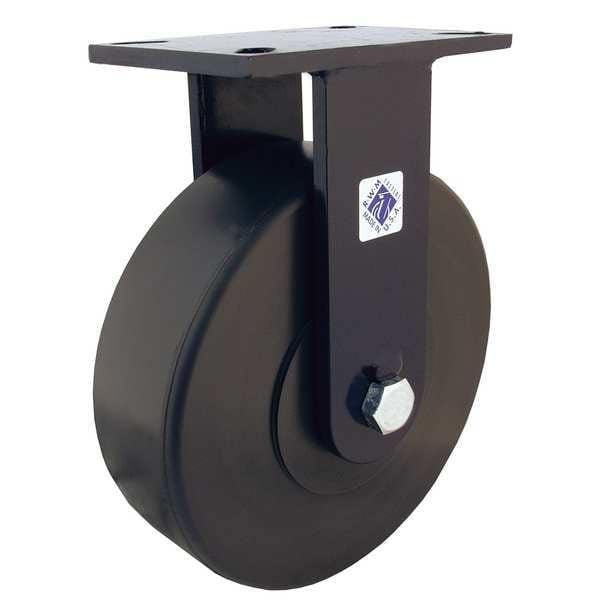

Rigid Plate Caster, Phenolic, 8 in, 2500 lb

Rwm Rigid Plate Caster, Phenolic, 8 in, 2500 lb 76-DUR-0830-R
Hover or click to zoom Tap to zoom
$146.19
  • Caster Brake Included: No
  • Caster Load Rating Range: Medium-Duty
  • Caster Sub-Type: Rigid
  • Caster Wheel Shape: Standard
  • Caster Wheel/Tread Material: Phenolic
  • Load Rating: 2500 lb
  • Number of Wheels: 1
  • Wheel/Tread Material: Phenolic
See full product details
This item ships free.

Total: $146.19

Rwm #76-DUR-0830-R Specifications

  • Caster Brake Included: No
  • Caster Load Rating Range: Medium-Duty
  • Caster Sub-Type: Rigid
  • Caster Wheel Shape: Standard
  • Caster Wheel/Tread Material: Phenolic
  • Load Rating: 2500 lb
  • Number of Wheels: 1
  • Wheel/Tread Material: Phenolic
  • Overall Height: 10-1/2"
  • Wheel Dia.: 8 in
  • Wheel Bearing Type: Roller
  • Wheel Width: 3 in
  • Mounting Plate Size: 5 1/4 in x 7 1/4 in
  • Mounting Plate Bolt Hole Pattern: A
  • Swivel Lock Type: No Lock Included
  • Wheel Core Material: Phenolic
  • Non-Marking: Yes
  • Extended Lead: Yes
  • Outside Bolt Hole Spacing: 4-1/8 in x 6-1/8 in
  • Caster Plate Thickness: 3/8"
  • Caster Wheel Bearings: Roller
  • Caster Product Group: Rigid Caster
  • Frame Finish: Blue Powder Coat
  • Plate Thickness: 3/8"
  • Wheel Color: Black
  • Plate Caster Bolt Hole Pattern: A
  • Plate Size: 5-1/4" x 7-1/4"
  • Standards: ICWM, ISO 9001:2015
  • Frame Material: Steel
  • Caster Raceway: Roller
  • Includes: Complete Caster
  • Durometer: 90 Shore D
  • Core Color: Black
  • Caster Swivel Lock Type: No Lock Included
  • Item: Kingpinless Plate Caster
  • Application: Dollies, Utility Carts, Platform Trucks in Boat, Ship Molding, Heavy Machinery and Equipment, Storage Tanks, and Coliseum Equipment
  • Caster Core Material: Phenolic
  • Inside Bolt Hole Spacing: 3-3/8 in x 5-1/4 in
  • Features: Kingpinless Raceway
  • Caster Frame Material: Steel
  • Caster Plate Hole Pattern: A
  • Caster Min. Temp.: -65 Degrees F
  • Thread Guards: No
  • Caster Plate Size: 5-1/4" x 7-1/4"
  • Caster Max. Temp.: 275 Degrees F
  • Caster Temp. Range Available: Yes
  • Replacement Wheel: Mfr. No. DUR-0830-12
  • Caster Temp. Range: -65 Degrees to 275 Degrees F
  • Mounting Bolt Dia.: 1/2 in
  • Mounting Height: 10 1/2 in
  • Tread Shape: Standard
  • Number of Mounting Holes: 4
  • Swivel Raceway Type: Roller
  • Load Rating Range: 1000 to 2999 lb
  • Includes Thread Guards: No
  • Wheel/Tread Hardness: 90 Shore D
  • Caster Brake Type: No Brake Included
  • Wheel/Tread Hardness Rating: Hard
  • Wheel/Tread Color: Black
  • Country of Origin (subject to change): United States

Description

Rigid, Kingpinless Plate Caster, Load Rating 2500 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 3 in, Wheel/Tread Material Phenolic, Wheel Core Material Phenolic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake Included, Tread Shape Standard
