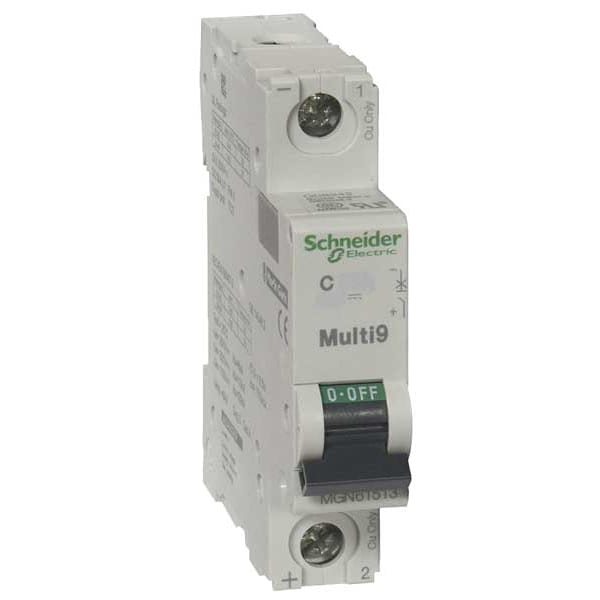

  5. Miniature Circuit Breaker, MULTI9 Series, 5A, 1 Pole, Not Rated, 5kA at 250V DC, C Curve
Schneider Electric Miniature Circuit Breaker, MULTI9 Series, 5A, 1 Pole, Not Rated, 5kA at 250V DC, C Curve MGN61505 - main

Miniature Circuit Breaker, MULTI9 Series, 5A, 1 Pole, Not Rated, 5kA at 250V DC, C Curve

  • Mfr # MGN61505

  • Zoro # G1445875

product price:  $118.99
/ea
Sold in multiples of 144 for $17,134.56
Free Shipping & Returns

Key Features

Series
MULTI9
Amps
5A
Number of Poles
1
AC Voltage Rating
Not Rated
Phase
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
MGN61505
Zoro #
G1445875
UPC #
785901869139
Country of Origin
China

Dimensions

Width
0.71 in
Depth
2.87 in
Height
3.19 in
Min. Wire Size
14 AWG
Max. Wire Size
2 AWG
Length
3.19 in

Details

Item
Miniature Circuit Breaker
Series
MULTI9
Amps
5A
Number of Poles
1
AC Voltage Rating
Not Rated
Phase
1
Circuit Breaker Actuator
Toggle
Circuit Breaker Mounting Style
Clip On
Max. AIR Rating
5kA at 250V DC
Trip Type
Thermal Magnetic
Terminal Connection
Lugs
DC Voltage Rating
250V DC
Curve Type
C
Standards
CE, CSA, IEC, UL 1077
Color
Gray
Interrupt Rating
15 kA at 110 V DC, 7.5 kA at 250 V DC, 4.5 kA at 220 V DC, 10 kA at 220 V DC, 6 kA at 250 V DC, 20 kA at 110 V DC, 5 kA at 12/250 V DC
Application
Distribution
Features
Mercury Free; Padlockable
Meets UL Type
UL 1077
Poles Description
1P
Electrical Durability
3000 cycles L/R = 2 ms
Rated Insulation Voltage
500 V DC EN/IEC 60947-2
Operating Altitude
6561.68 ft (2000 m)
Locking Options Description
In position O
Tropicalisation
2 IEC 60068-2; 2 GB 14048.2
Connections - Terminals
Tunnel type terminal top or bottom) 0.00 to 0.04 in² (1 to 25 mm²) AWG 18 to AWG 4) - rigid stranded; Tunnel type terminal top or bottom) 0.00 to 0.02 in² (1 to 16 mm²) AWG 18 to AWG 6) - flexible; Tunnel type terminal top or bottom) 0.00 to 0.02 in² (1 to 16 mm²) AWG 18 to AWG 6) - flexible with ferrule; Tunnel type terminal top or bottom) - 2 0.00 to 0.02 in² (1 to 10 mm²) AWG 18 to AWG 8) - rigid stranded; Tunnel type terminal top or bottom) - 2 0.00 to 0.02 in² (1 to 10 mm²) AWG 18 to AWG 8) - flexible; Tunnel type terminal top or bottom) - 2 0.00 to 0.02 in² (1 to 10 mm²) AWG 18 to AWG 8) - flexible with ferrule; Tunnel type terminal top or bottom) - 3 0.00 in² (1 mm²) AWG 18) - flexible stranded
Earth-Leakage Protection
Without
Rated Service Breaking Capacity
15 kA 75% GB 14048.2 - 110 V DC; 15 kA 75% EN/IEC 60947-2 - 110 V DC; 7.5 kA 75% EN/IEC 60947-2 - 250 V DC; 4.5 kA 75% EN/IEC 60947-2 - 220 V DC; 7.5 kA 75% GB 14048.2 - 250 V DC; 4.5 kA 75% GB 14048.2 - 220 V DC
Product Certifications
UR; CCC; IEC
Magnetic Tripping Limit
8.5 x In +/- 20% AC
Pollution Degree
3 EN/IEC 60947-2
Comb Busbar And Distribution Block Compatibility
Top or bottom standard
9 mm Pitches
2
Ambient Air Temperature For Operation
-13 to 158°F (-25 to 70°C)
Rated Operational Voltage
12 to 250 V DC
Ambient Air Temperature For Storage
-40 to 185°F (-40 to 85°C)
Network Type
DC
Rated Impulse Withstand Voltage
6 kVEN/IEC 60947-2
Limitation Class
3 EN/IEC 60947-2
Mechanical Durability
20000 cycles
Local Signalling
ON/OFF indication
Contact Position Indicator
Yes
Suitability For Isolation
Yes EN/IEC 60947-2
Provision For Padlocking
Padlockable
IP Degree Of Protection
IP20 conforming to IEC 60529; IP40 (modular enclosure) conforming to IEC 60529
Relative Humidity
95% 131°F (55°C)
Overvoltage Category
IV
Tightening Torque
22.13 lbf.in (2.5 N.m) top or bottom
Breaking Capacity
10 kA Icu 220 V DC GB 14048.2; 6 kA Icu 250 V DC GB 14048.2; 20 kA Icu 110 V DC GB 14048.2; 20 kA Icu 110 V DC EN/IEC 60947-2; 10 kA Icu 220 V DC EN/IEC 60947-2; 6 kA Icu 250 V DC EN/IEC 60947-2; 5 kA AIR 12 to 250 V DC UL 1077
Instantaneous Trip
Fixed
Circuit Breaker Type
Low Voltage

Description

IEC Supplementary Protector, Amps 5 A, AC Voltage Rating Not Rated, Max. AIR Rating 5kA at 250V DC, Series C60H-DC, Curve Type C, DC Voltage Rating 250V DC, Number of Poles 1, Phase 1, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style DIN Rail, Meets UL Type UL 1077, Terminal Connection Lug, Trip Type Thermal Magnetic, Application Distribution, Min. Wire Size 14 AWG, Max. Wire Size 2 AWG, Length 3.19 in, Width 0.71 in, Depth 2.76 in, Standards CE, CSA, IEC, UL 1077
