Siemens

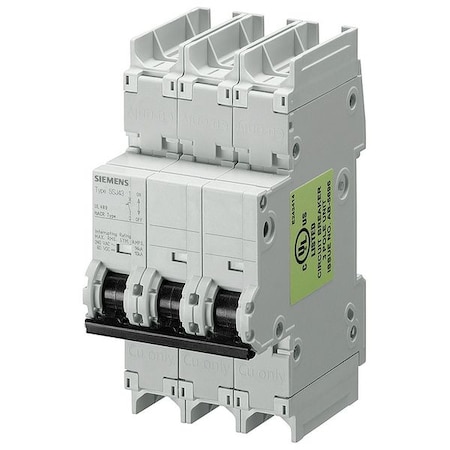

Miniature Circuit Breaker, 1 A, 240V AC, 3 Pole, 5SJ4 Series

Hover or click to zoom Tap to zoom
Key Features
  • Item: Miniature Circuit Breaker
  • AC Voltage Rating: 240V AC
  • DC Voltage Rating: 60V DC
  • Curve Type: D
  • Max. AIR Rating: 14 kA
  • Terminal Connection: Screw Clamp
  • Series: 5SJ4
  • Number of Poles: 3
See full product details
$223.57
Join our email list for 10% off your first order
For 10% Off Your First Order
Free Shipping on $50+ Orders
No-Hassle, 30-Day Returns 30-Day Returns
125 U.S.-Based Customer Service Agents 125 U.S.-Based Customer Service Agents

Siemens #5SJ43018HG41 Specifications

  • Item: Miniature Circuit Breaker
  • Amps: 1 A
  • AC Voltage Rating: 240V AC
  • DC Voltage Rating: 60V DC
  • Curve Type: D
  • Max. AIR Rating: 14 kA
  • Terminal Connection: Screw Clamp
  • Series: 5SJ4
  • Number of Poles: 3
  • Standards: CSA C22.2 No. 5-02, EN60898, EN60947-2, UL 489 Listed
  • Mounting: Din Rail
  • Min. Wire Size: 14 AWG
  • Width: 2.28 in
  • Application: Commercial, Industrial
  • Depth: 3.3 in
  • Length: 4.48 in
  • Max. Wire Size: 4 AWG
  • Trip Type: Thermal Magnetic
  • Length (Straight Wireway): 4.48 in
  • Country of Origin (subject to change): Germany

Description

Miniature Circuit Breaker, Amps 1 A, Number of Poles 3, Curve Type D, AC Voltage Rating 240V AC, DC Voltage Rating 60V DC, Max. AIR Rating 14 kA, Terminal Connection Screw Clamp, Series 5SJ4, Trip Type Thermal Magnetic, Application Commercial, Industrial, Min. Wire Size 14 AWG, Max. Wire Size 4 AWG, Length 4.48 in, Width 2.28 in, Depth 3.3 in, Standards CSA C22.2 No. 5-02, EN60898, EN60947-2, UL 489 Listed

Restrictions and Compliance

  • Hazardous material
