  5. Molded Case Circuit Breaker, POWERPACT Q Series, 225A, 2 Pole, 240V AC, 10kA at 240V AC

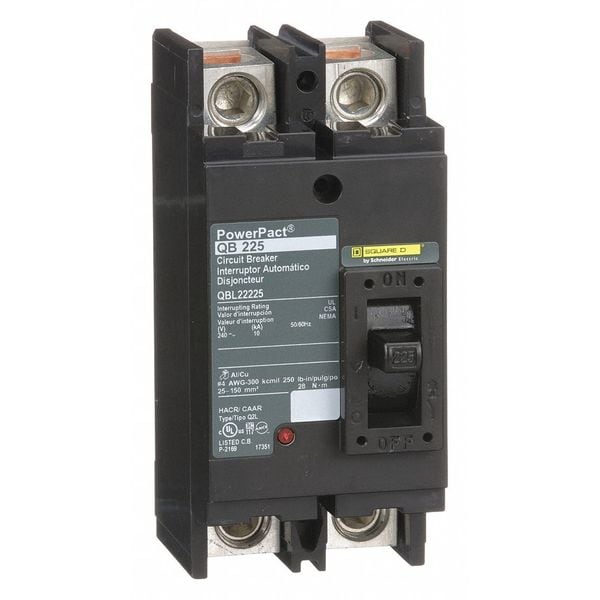

Square D Molded Case Circuit Breaker, POWERPACT Q Series, 225A, 2 Pole, 240V AC, 10kA at 240V AC QBL22225 - main

Molded Case Circuit Breaker, POWERPACT Q Series, 225A, 2 Pole, 240V AC, 10kA at 240V AC

  • Mfr # QBL22225

  • Zoro # G1726584

product price:  $267.99
/ea
Free Shipping & Returns

Key Features

Series
POWERPACT Q
Number of Poles
2
AC Voltage Rating
240V AC
Circuit Breaker Type
Standard
Phase
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
QBL22225
Zoro #
G1726584
UPC #
785901412663
Country of Origin
Mexico

Dimensions

Frame Size
250A/QB
Width
3 in
Depth
3.93 in
Height
6.47 in
Max. Wire Size
300 MCM
Min. Wire Size
4 AWG
Power Wire Stripping Length
0.87 in (22 mm)

Details

Item
Molded Case Circuit Breaker
Series
POWERPACT Q
Amps
225A
Number of Poles
2
AC Voltage Rating
240V AC
Circuit Breaker Type
Standard
Phase
1
Circuit Breaker Actuator
Toggle
Circuit Breaker Mounting Style
Surface Mount/DIN Rail
Max. AIR Rating
10kA at 240V AC
Trip Type
Thermal Magnetic
Instantaneous Trip
Fixed
Terminal Connection
Lugs
DC Voltage Rating
Not Rated
Standards
CSA, IEC, UL Listed
High Amp Trip Setting
2,400 A
Low Amp Trip Setting
1,200 A
Application
HACR rated Applications; Distribution
Features
Mercury Free; PVC Free
Interrupt Rating
10 kA at 120/208/240V AC
Network Frequency
50/60 Hz
Magnetic Hold Current
1200 A
Product Certifications
UL; CSA; NOM
Mechanical Durability
1000 cycles loaded; 5000 cycles no load
Circuit Breaker Application
HACR rated
Control Type
Operating handle
Magnetic Tripping Current
2400 A
Breaking Capacity Code
B
Device Application
Distribution
Rated Impulse Withstand Voltage
8 kV UL
Breaking Capacity
10 kA 120/208 V AC 50/60 Hz UL; 10 kA 240 V AC 50/60 Hz UL
Rated Operational Voltage
240 V AC 50/60 Hz UL
Continuous Current Rating
0.8
Tightening Torque
247.82 lbf.in (28 N.m) 0.04 to 0.23 in² (25 to 150 mm²) (AWG 4 to 300 kcmil)
Ambient Air Temperature For Operation
104 to 158°F (40 to 70°C)
Local Signalling
1 trip indicator green)

Description

Molded Case Circuit Breaker, 225 A Amps, AC Voltage Rating 240V AC, Max. AIR Rating 10kA at 240V AC, For Use With -, Series QB, High Amp Trip Setting 2,400 A, Low Amp Trip Setting 1,200 A, Circuit Breaker Type Standard, Number of Poles 2, DC Voltage Rating Not Rated, Terminal Connection Line/Load Lug, Trip Type Thermal Magnetic, Phase Single, Instantaneous Trip Fixed, Phase Connection Not Applicable, Frame Size 250A/QB, Circuit Breaker Mounting Style Free Standing, Height 6.47 in, Width 4.5 in
