  11. Walter Titex - Solid carbide twist drill, Extra Long Drill, 1/4", Carbide, DC170-20-06.350A1-WJ30EJ
Shop All Coolant Fed Drill Bits
Walter Titex

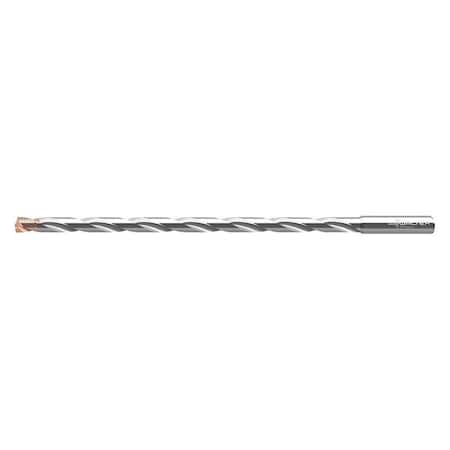

Walter Titex - Solid carbide twist drill, Extra Long Drill, 1/4", Carbide, DC170-20-06.350A1-WJ30EJ

Hover or click to zoom Tap to zoom
Key Features
  • Drill Bit Grouping: Drill Bit
  • Item: Extra Long Drill Bit
  • Overall Length: 7 55/64 in
  • Drill Bit Dimension Type: Fractional Inch
  • Drill Bit Size: 1/4 in
  • Flute Type: Spiral
  • Decimal Equivalent: 0.2500
  • Point Type: Self-centering
See full product details
$500.66
Join our email list for 10% off your first order
For 10% Off Your First Order
Free Shipping on $50+ Orders
No-Hassle, 30-Day Returns 30-Day Returns
125 U.S.-Based Customer Service Agents 125 U.S.-Based Customer Service Agents

Specifications

Dimensions

Overall Length 7 55/64 in
Drill Bit Size 1/4 in
Size 1/4"
Flute Length 6 3/8 in
Depth x Dia. Ratio 20xD
Depth:Dia. Ratio 20xD
Drill Length Class Extra Long
Shank Length 1 13/32 in
Maximum Drilling Depth 6 3/8 in
Drill Point Length 1.16mm
Drill Diameter Tolerance H7

Details

Drill Bit Grouping Drill Bit
Item Extra Long Drill Bit
Drill Bit Dimension Type Fractional Inch
Flute Type Spiral
Decimal Equivalent 0.2500
Point Type Self-centering
Drill Bit Material Solid Carbide
Drill Bit Finish Bright
Application Drilling in Steel and Cast Iron
Drill Bit Point Angle 140 Degrees
Measurement System Fractional Inch
Coolant Fed Coolant Through
Coolant Through Yes

Description

Extra Long Drill Bit, Drill Bit Size 1/4 in, Drill Bit Point Angle 140 Degrees , Self-Centering Point, Carbide, TiAlN+AlCrN, Material Grade - Machining WJ30EJ, Maximum Drilling Depth 6 3/8 in, Fractional Inch, 20xD
