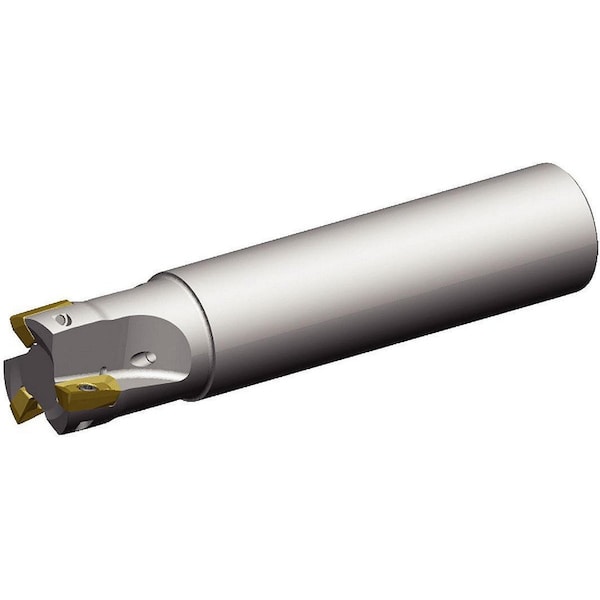

Widia Indexable Profiling End Mill, VSM11 Series, High Speed Steel, 11.55mm Depth of Cut VSM11D020Z03A20XD11L170 - main

Indexable Profiling End Mill, VSM11 Series, High Speed Steel, 11.55mm Depth of Cut

  • Mfr # VSM11D020Z03A20XD11L170

  • Zoro # G3801699

product price:  $411.99
/ea
Free Shipping & Returns

Key Features

Series
VSM11
Overall Length
170.00mm
Depth of Cut
11.55mm
Material - Machining
High Speed Steel
Insert Size
110408
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
VSM11D020Z03A20XD11L170
Zoro #
G3801699
UPC #
4050839641253
Country of Origin
Bulgaria

Dimensions

Overall Length
170.00mm
Depth of Cut
11.55mm
Insert Size
110408
Shank Dia.
20.00mm
Shank Length
129.00mm
Min. Cutting Dia.
20.00mm
Head Projection Length
41.00mm
Neck Dia.
18.00mm

Details

Item
Indexable Profiling End Mill
Series
VSM11
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Insert Shape
75 Degrees Parallelogram
Rake
-8 Degrees Radial, 7 Degrees Axial
Toolholder Style
XDPT11
Features
Effective Internal Coolant Feature, Increased Ramping Capability, Precisely Reaching the Cutting Edge, Superior Wall and Surface Finish
Side Cutting Edge Angle
90 Degrees
Max. Speed
35,100 RPM
Number of Coolant Holes
1
Number of Inserts
3
Cutting Application
Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Square End
ISO Number
VSM11D020Z03A20XD11L170
Shank Type - Machining
Straight
Insert Style
XD.T PD R
Compatible Hardware
Insert Screw M2.5x0.45 x 5.9 T8, Torx Wrench TX8
Insert Holding Type
Screw
Coolant Fed
Coolant Through
ANSI Code
VSM11D020Z03A20XD11L170

Description

Indexable Profiling End Mill, Depth of Cut 11.55mm, Shank Dia. 20.00mm, Overall Length 170.00mm, ANSI Code VSM11D020Z03A20XD11L170, Compatible Hardware Insert Screw M2.5x0.45 x 5.9 T8, Torx Wrench TX8, Coolant Fed Coolant Through, Cutting Application Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Square End
