  6. Cse M12 M12 5P Ac Fe Ra Wsor Ma Str 10M

This item is Discontinued.

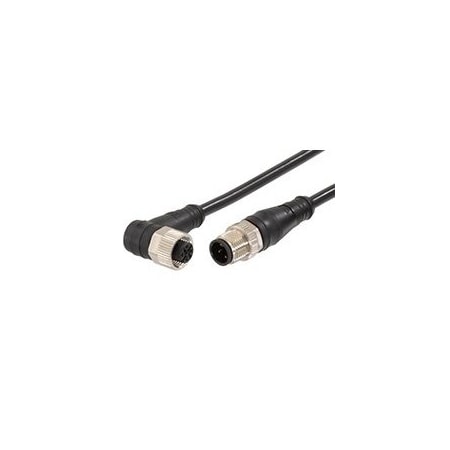

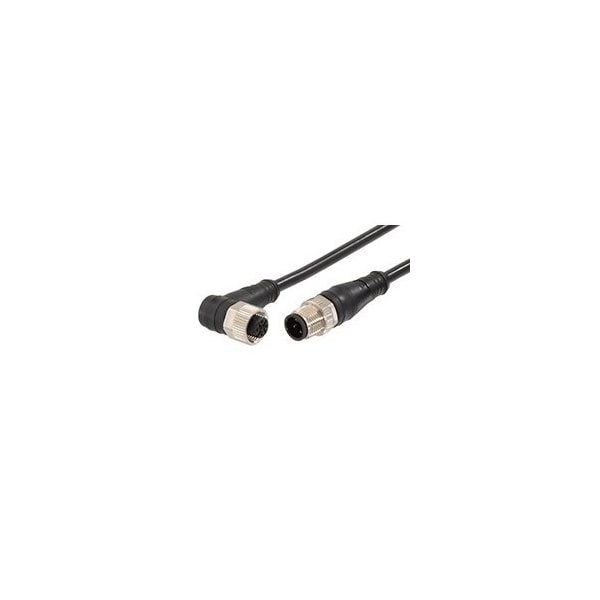

Woodhead Cse M12 M12 5P Ac Fe Ra Wsor Ma Str 10M 885S31BS1M100

Cse M12 M12 5P Ac Fe Ra Wsor Ma Str 10M (Discontinued)

  • Mfr # 885S31BS1M100
  • Zoro # G405983028
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
885S31BS1M100
Zoro #
G405983028
UPC #
-
Country of Origin
Poland

Dimensions

Cable Length
10.0m (32.81')
Cable Diameter
6.10mm (.240")
Wire Size AWG
22

Details

IP Rating
IP67
Series
120069
Keyway
Single
Type
Double Ended
Material - Plating Mating
Gold
Material - Cable Jacket
TPU
Material - Coupling Nut
Nickel-plated Brass
Gender
Female-Male
Voltage - Maximum
60V
Temperature Range - Operating
-25°C to +85°C
Coupling Style
Knurled Hexnut, Threaded
UL
E152210
Poles
5
Orientation
90° to Straight
Current - Maximum per Contact
4.0A
Wire/Cable Type
WSOR
LED Indicator
No
Material - Connector Body
TPU
Color - Cable Jacket
Black
Connector End B
Micro-Change (M12)
Material - Contact
Brass
Connector End A
Micro-Change (M12)
Material - O-Ring
Fluoro-elastomer
Product Name
Micro-Change (M12)
