Shoulder Screw, 1/4"X1/4", 10-24

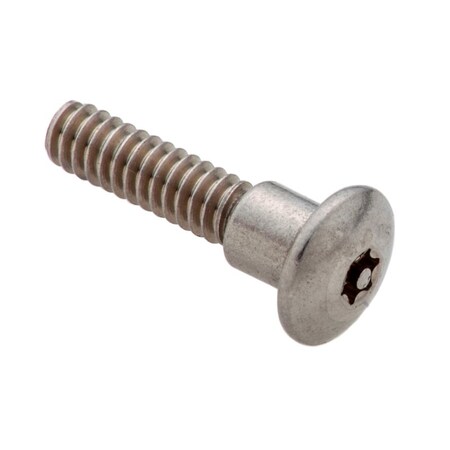

Zoro Select Shoulder Screw, 1/4"X1/4", 10-24 5MA47
Tap to zoom
Hover or click to zoom
$1.50
  • Material: 18-8 Stainless Steel
  • Thread Size: #10-24
  • System of Measurement: Inch
See full product details
Orders over $75 ship free.
Total: $1.50

Zoro Select #5MA47 Specifications

  • Material: 18-8 Stainless Steel
  • Thread Size: #10-24
  • System of Measurement: Inch
  • Drive Type: 6-Lobe with Pin
  • Thread Length: 5/8 in
  • Head Style: Truss
  • Finish: Plain
  • Shoulder Length: 1/4 in
  • Type: Tamperproof
  • Dia./Thread Size: #10-24
  • Item: Shoulder Screw
  • Package Quantity: 1
  • Head Dia.: 7/16 in
  • Head Height: 1/4 in
  • Rockwell Hardness: B85 to B95
  • Min. Tensile Strength (PSI): 80,000 psi
  • Shoulder Length Tolerance: 1/4 in
  • Drive Size: T20
  • Shoulder Dia.: 1/4 in
  • Meets/Exceeds: RoHS Compliant
  • Country of Origin (subject to change): Taiwan, Province of China

Description

Shoulder Screw, 18-8 SS, Plain Finish, Truss Head Style, 6 Lobe With Pin Drive Type, Drive Size T20, Thread Size 10-24, Shoulder Diameter 1/4 In, Screw Shoulder Length 1/4 In, Thread Length 5/8 In, Head Dia 7/16 In, Head Height 1/4 In, Min Tensile Strength 80,000 PSI, Rockwell Hardness B85-B95
  • Tamper resistant
  • Excellent corrosion resistance
  • Mildly magnetic
  • USA Made
  • RoHS Compliant
  • DFARs Compliant
