This item is Discontinued.

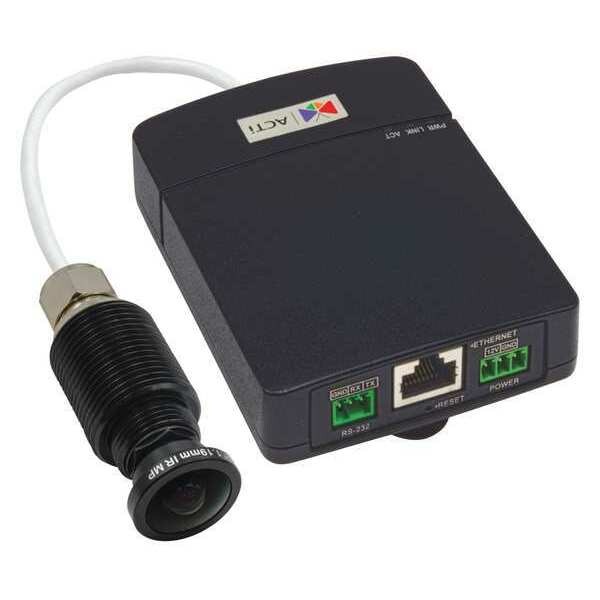

Acti IP Camera, Board, 3-61/64"D, 1.19mm Focal L Q111

This item is Discontinued.

Acti

IP Camera, Board, 3-61/64"D, 1.19mm Focal L (Discontinued)

Mfr # Q111
Zoro # G5079466
UPC # 888034007611
Country of Origin Taiwan, Province of China
Category Closed Circuit TV Cameras
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
Q111
Zoro #
G5079466
UPC #
888034007611
Country of Origin
Taiwan, Province of China

Dimensions

Width
3 61/64 in
Focal Length
1.19 mm
Length
1 1/4 in
Depth
3 61/64 in
Diameter
2 61/64 in
Height
1 in
Overall Length
1 1/4 in
Overall Height
4 in
Overall Width
3 in
Maximum Focal Length
1.2 mm
Wire Rope Length
1 1/4 in

Details

Item
IP Camera
For Use With
Video Surveillance Systems
HD Resolution
1080p
Includes
Mounting Hardware
Camera Type
Color
Camera Design
Fisheye
Lens
Fixed
Power Required
12V DC @ 4A Power Over Ethernet
Camera Resolution
5 Megapixel
Connector Type
Ethernet
Line Resolution
5 MP
Min. Light Level
0.1 lux
Power Consumption
4.32 W
Mount
Ceiling, Surface, Wall
Indoor / Outdoor
Indoor
Operating Temp. Range
-40 Degrees to 122 Degrees F
Illumination
No
S/N Ratio
52dB
Standards
CE, EN50155, FCC, UL Listed
Pixels
2592 (H) x 1944 (V)
Luminance Factor
0.1 Lux
Camera Body Color
White
Scanning
Progressive
Day/Night Capable
Day
Power Supply
Not Included
Features
Easy-To-Install for Mounting Solutions, Event Trigger, Response and Notification
Video Compression Format
MJPEG, H.264
Digital Video Camera Image Sensor
CMOS
Weight
1.40 lb
Mounting
Surface Mount, Flush Mount, Corner Mount, Tilted Mount
Voltage
12V DC
Image Sensor
1/3.2 CMOS
Maximum Viewing Angle
189.7 Degrees
Output Type
No Outputs Included
Minimum Operating Temperature
-22 Degrees F
Includes Power Supply
No
Input Type
No Inputs Included
Maximum Operating Temperature
140 Degrees F
Minimum Viewing Angle
115.7 Degrees
Lens Type
Fixed
Indoor/Outdoor Usage
Indoor
Minimum Light Level
0.1 lux
Body Color
White
Color Display
Color
Night Capable
Day Only
Resistance Properties
Impact Resistant
Resolution
5MP
Operating Voltage
12V DC

Description

IP Camera, Camera Design Fisheye, Lens Type Fixed, Maximum Focal Length 1.2 mm, Resolution 5MP, Compatible Connector RJ45, Maximum Viewing Angle 189.7 Degrees , Minimum Viewing Angle 115.7 Degrees , Image Sensor 1/3.2 CMOS, Body Color White, Color Display Color, Features Easy-To-Install for Mounting Solutions, Event Trigger, Response and Notification, For Use With Video Surveillance Systems, Includes Mounting Hardware, Includes Power Supply No, Indoor/Outdoor Usage Indoor
