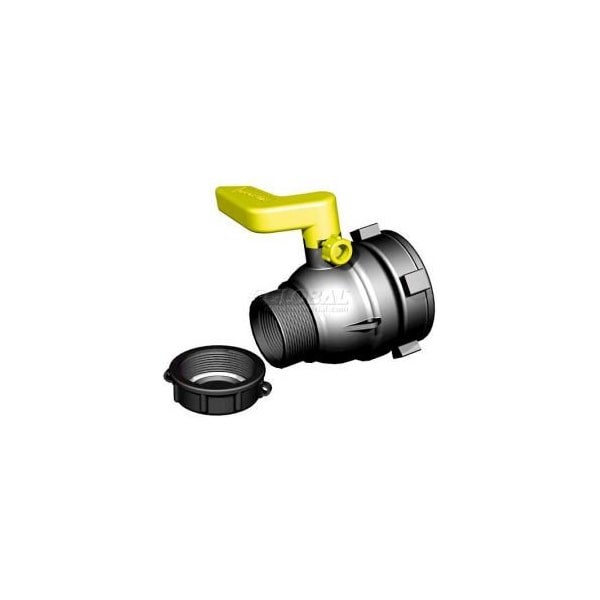

S75x6 Female Buttress x 2" Male NPT Pipe Thread IBC Valve
Mfr # DL2/75UF/2NPM/7
Zoro # G202608315
product price:Â
$
78.85
/ea
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- DL2/75UF/2NPM/7
- Zoro #
- G202608315
- UPC #
- 707022368742
- Country of Origin
- United States
Description
S75 X 6 FEMALE BUTTRESS TO 2" MALE NPT PIPE THREAD IBC VALVE FOR USE WITH SCHUETZ AND CLAWSON. MANUFACTURED FROM FDA FOOD GRADE MATERIALS IN A STRONG GLASS COUPLED POLYPROPYLENE UNDER AN ISO 9000 QUALITY MANAGEMENT SYSTEM. THE CPP GLASS COUPLED POLYPROPYLENE MATERIAL IS RATED TO 150PSI AND SUITABLE FOR MOST CHEMICALS CARRIED IN IBC TOTES. THREAD DETAILS: S75 X 6 MALE BUTTRESS THREAD. 75.0MM (2.95") OUTSIDE DIAMETER AND 6.00MM (0.24") THREAD PITCH (DISTANCE BETWEEN THREADS). THIS IS THE THREAD FOUND ON IBC'S FROM SCHUETZ, CLAWSON, FUSTIPLAST. REFER TO KEY B IN REFERENCE TABLE BELOW. NOTE: BSP FITTINGS ARE COMPATIBLE WITH NPS/NPT VALVES OR ADAPTERS WITH A 2" DIAMETER OR SMALLER; APPLICABLE FOR PLASTIC FITTINGS ONLY.
