Xtreme Performance Street Sprung

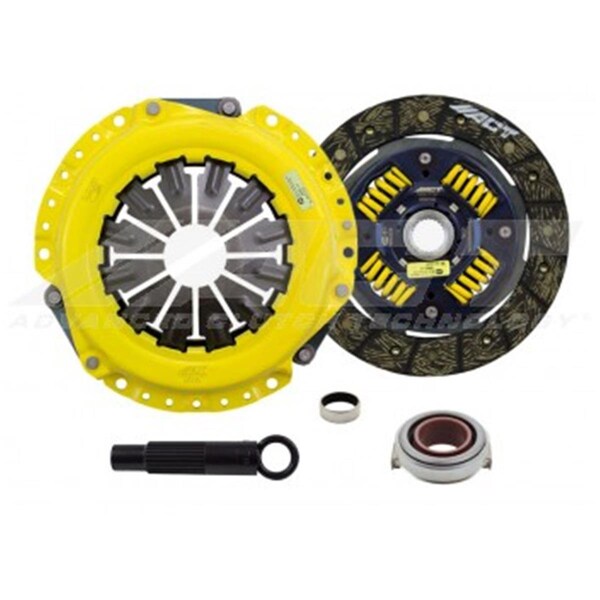

This item kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Performance street discs are the most popular disc purchased. They feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates. Quiet operation with increased strength and reliability. Disc Type: Street Disc. Engagement:. Moderate to heavy pedal effort, smooth engagement, OE to mild gear rattle. Recommended for street and race use. Specifications Spline Count: 24. Spline Size ( Inch) : 1.03. Disk Diameter ( Inch) : 8.4. Torque Capacity ( Feet/lbs) : 340. Torque Capacity Over OE: 78%. Pressure Plate Type: Xtreme. Kit Contents: 3000108, AT78, H024X, PBNA004, RB313. Weight : 11.1 lbs.
