This item is Discontinued.

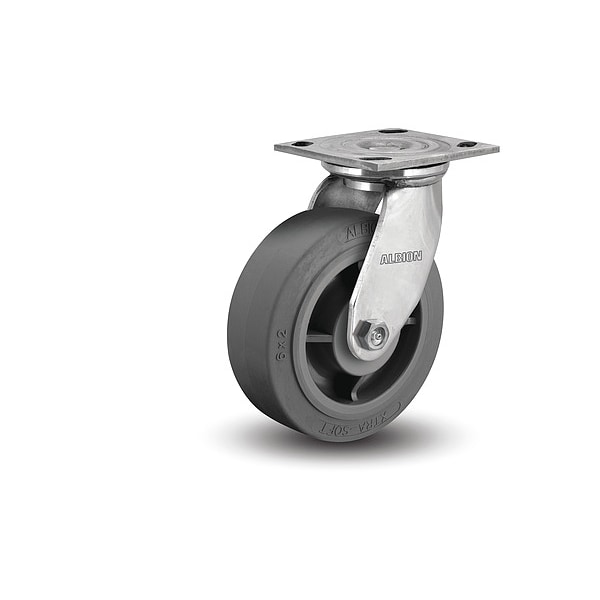

Albion Caster, Kingpin, 400 lb, 4 in Dia. 05XS04201S

This item is Discontinued.

Albion

Caster, Kingpin, 400 lb, 4 in Dia. (Discontinued)

Mfr # 05XS04201S
Zoro # G800712896
Country of Origin United States
Category Plate Casters
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
05XS04201S
Zoro #
G800712896
UPC #
-
Country of Origin
United States

Dimensions

Wheel Width
2 in
Mounting Plate Size
4 in x 4 1/2 in
Mounting Plate Thickness
1/4 in
For Axle Dia.
1/2 in
Mounting Height
5 5/8 in
Wheel Dia.
4 in
Overall Wheel Width
2 in
Swivel Radius
3 7/16 in
Mounting Bolt Dia.
3/8 in
Hub Length
2 3/16 in

Details

Swivel Raceway Type
Double Ball
Operating Temperature Range
-45 Degrees to 180 Degrees F
Standards
NSF, RoHS
Wheel Bearing Material
Stainless Steel
Number of Wheels
1
Frame Finish
Polished
Load Rating
400 lb
Inside Bolt Hole Spacing
2 5/8 in x 3 in
NSF Listed
Yes
Wheel/Tread Hardness Rating
Soft
Caster Sub-Type
Swivel
Non-Marking
Yes
Item
Plate Caster
Number of Mounting Holes
4
Outside Bolt Hole Spacing
3 in x 3 5/8 in
Wheel/Tread Hardness
65-75 Shore A
Includes Thread Guards
No
Features
Ergonomic Wheel, Floor Protective Wheel, Harsh Environment Wheel, Metal Debris Resistant Wheel, Non-Marking Wheel, Premium Rubber Wheel, Shock-absorbing Wheel, Water Resistant Wheel
Application
Bakery Troughs, Clean Room, Dollies, Food Processing, Food Service, Hospital Waste Management, Laboratory Equipment, Marine, Pharmaceutical Equipment
Tread Shape
Donut
Includes Spanner Bushing
Yes
Swivel Construction
Kingpin
Wheel/Tread Color
Gray
Core Color
Gray
With Toe Plate
No
Wheel Core Type
Solid
Wheel Type
Flat-Free
Wheel Bearing Type
Roller
Swivel Lead
1 7/16 in
Wheel/Tread Material
Rubber
Caster Mounting Type
Plate
Mounting Plate Bolt Hole Pattern
B
Caster Product Group
Swivel Caster
Caster Frame Material
Stainless Steel
Frame Construction
Formed
Wheel Core Material
Rubber
Caster Brake Type
No Brake
Swivel Lock Type
No Lock Included
Load Rating Range
300 to 999 lb
Load Capacity - Maximum
400 lb

Description

Swivel, Plate Caster, Load Rating 400 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Rubber, Wheel Core Material Rubber, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Donut
