  6. 6" X 2" Non-Marking Phenolic Swivel Caster, No Brake, Loads Up To 1200 lb

This item is Discontinued.

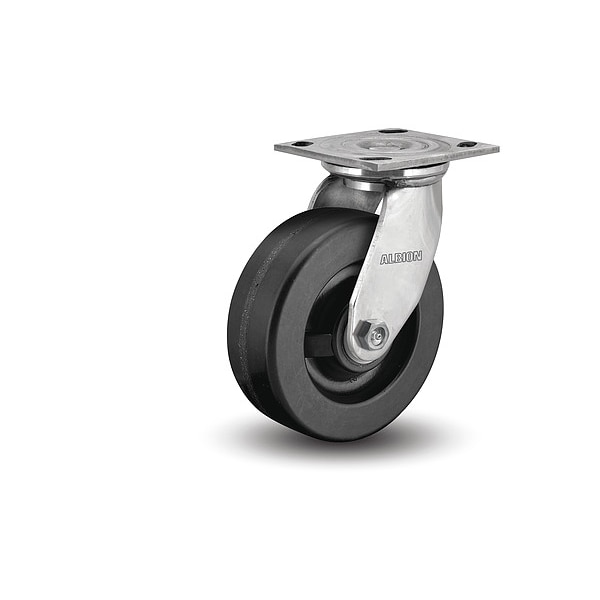

Albion 6" X 2" Non-Marking Phenolic Swivel Caster, No Brake, Loads Up To 1200 lb 05TM06201S

6" X 2" Non-Marking Phenolic Swivel Caster, No Brake, Loads Up To 1200 lb (Discontinued)

  • Mfr # 05TM06201S
  • Zoro # G600712782
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
05TM06201S
Zoro #
G600712782
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
6 in
Wheel Width
2 in
Mounting Height
7-1/2 in
Mounting Plate Thickness
1/4 in
Mounting Bolt Dia.
3/8 in
Overall Wheel Width
2 in
Swivel Radius
4 7/8 in
For Axle Dia.
1/2 in
Mounting Plate Size
4 in X 4-1/2 in
Hub Length
2 3/16 in

Details

Item
Plate Caster
Caster Sub-Type
Swivel
Wheel/Tread Material
Phenolic
Caster Brake Type
No Brake
Wheel Bearing Type
Roller
Wheel/Tread Color
Black
Caster Stem Type
Top Plate
Number of Mounting Holes
4
Caster Frame Material
Stainless Steel
Core Color
Black
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
3 in X 3-5/8 in
Inside Bolt Hole Spacing
2-5/8 in X 3 in
Mounting Plate Bolt Hole Pattern
B
Features
Stainless, USA-Made Wheel
Load Rating
1200 lb
Wheel/Tread Hardness Rating
Hard
Caster Mounting Type
Plate
Swivel Lead
1 7/8 in
Tread Shape
Standard
Swivel Raceway Type
Double Ball
Swivel Lock Type
No Lock Included
Wheel Type
Phenolic
Frame Finish
Polished
Application
Food Processing, Bakery Dough Troughs,Stainless Carts, Pharmaceuticals, Laboratory, Clean Room, Hospital Waste Management, Marine, Dollies
Includes Spanner Bushing
Yes
Caster Product Group
Swivel Caster
Frame Construction
Formed
Wheel Core Material
Solid
Wheel/Tread Hardness
ROCKWELL 102E
Standards
NSF Listed, RoHS Compliant
Includes Thread Guards
No
With Toe Plate
No
Wheel Bearing Material
Stainless Steel
NSF Listed
Yes
Operating Temperature Range
-65°F to 250°F
Load Rating Range
1000 to 2999 lb
Load Capacity - Maximum
1,200 lb

Description

Swivel, Plate Caster, Load Rating 1200 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Phenolic, Wheel Core Material Phenolic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Donut
