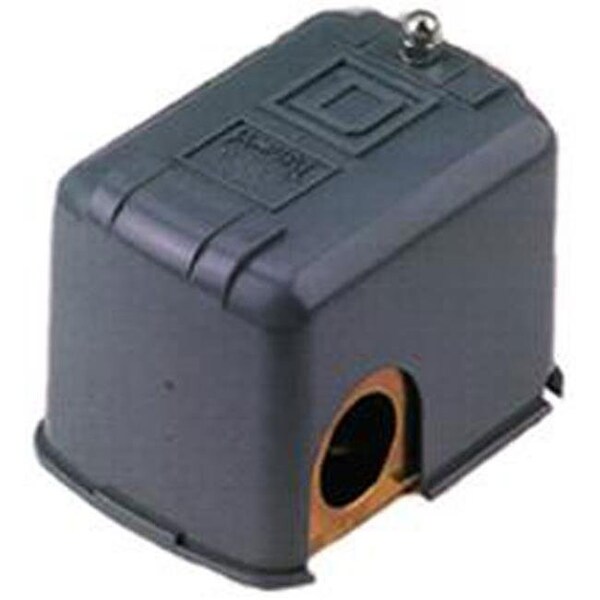

American Granby FYG2J25 Pressure Switch - 60-80 PSI (Discontinued)
Specifications
Details
- MFR #
- FYG2J25
- Zoro #
- G003920098
- UPC #
- 785901561460
- Country of Origin
- China
Description
Pressure Switch - 60-80 Psi
Differential Pressure 20 to 30 PSI, Burst Pressure 220 PSI, Port Type 1-Port 1/4 In NPS (Female), Diaphragm Actuation Type, Single/Three Phase, DPST Contact Type, 10 Amps, NEMA 1 Enclosure, Temp Range -22 to 257 F, Standards UL/CSA Pumptrol Water Pump Pressure SwitchesDesigned for direct control of electrically driven pumps. Can be used with motor starters to control higher horsepower motors. Temp. range: -22 to 257 F.UL Listed and CSA Certified. NSF 61 Annex G and NSF 372 Certifications. NSF 372 on 9013G NSF 61 Annex G on 9013FSG.1and 2-pole, HP Rated 1/4" female connection Diaphragm actuated Standard action contacts open on rising pressure Reverse action contacts open on falling pressure NEMA 1 enclosure.
Specifications- Dimension: 0.1 x 0.1 x 0.1 in.
- Weight: 0.9 lbs
