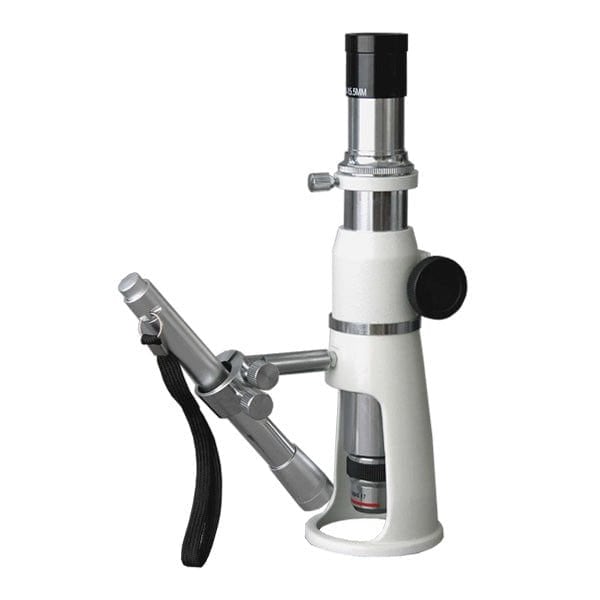

Measuring Monocular Stereo Microscope 50X Magnification with Pen Light

H50 Series Measuring Monocular Stereo Microscope 50X Magnification with Pen Light. This measurement microscope provides a simple tool for making precise optical measurements. This model uses a 10X eyepiece with a 100-graduation reticle, and a 5X achromatically-corrected objective lens. A removable pen-light can be positioned to provide illumination when needed. Rack-and-pinion focusing allows you to make precise focus adjustments to guarantee correct measurements. Features: 50X total magnification Interchangeable eyepieces and objective lenses Optional lenses available for different magnifications 100-graduation reticle can be calibrated against fine-resolution rulers for precise measurements Specifications: Eyepiece Magnification: 10X Objective Lens Magnification: 5X Reticle Coarse Graduations:10 Reticle Sub-graduations:10 Focusing Range: 30mm Field-of-View: 0.31mm Light-source: Pen light 2 x AAA batteries required Dimensions: 8.25" x 2.5" Contents: One microscope body One 10X eyepiece with graduated reticle One 5X achromatic objective lens One pen light One magnetic closure storage box Two AAA batteries NOT included

• 50X high quality widefield shop microscope
• Precise optics with measuring reticle offer clear images
• Combines compact design and precise optics together
• Portable pen light powered by batteries
