This item is Discontinued.

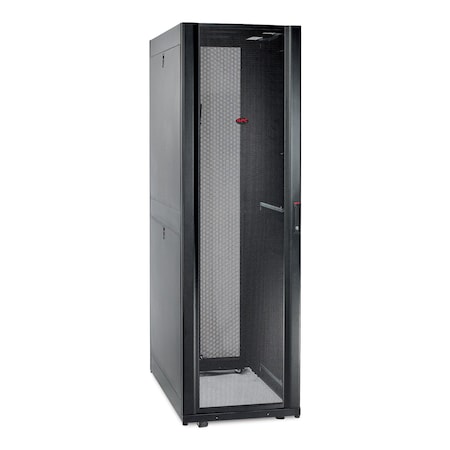

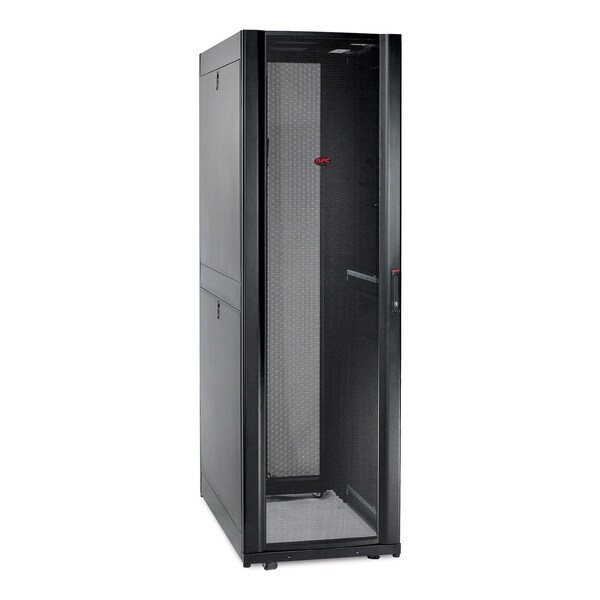

Apc Enclosure, 42 in D, 78 in H, 23 in W, 42U AR3100

Enclosure, 42 in D, 78 in H, 23 in W, 42U (Discontinued)

  • Mfr # AR3100
  • Zoro # G9858511
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
AR3100
Zoro #
G9858511
UPC #
731304226390
Country of Origin
United States

Dimensions

Height
78.39 in
Width
35.38 in
Depth
50.3 in
Overall Width
23 5/8 in
Overall Height
78 3/8 in
Rack Width
19"
Rack Height
42U
Overall Depth
42 1/8 in
Manufacturers Warranty Length
5 yr

Details

Item
Standard Enclosure
Mounting Style
Free-Standing
Load Rating
3000 lbs.
Rack Units
42
Finish
Powder Coated
Material
Steel
Includes
Keys, Keyed-Alike Doors and Side Panels, Leveling Feet, Casters, Side Panels
Product Type
Rack Enclosure
Standards
EIA-310E, UL 2416, UL 60950-1
Features
Adjustable Mounting Rails, Leveling Feet
Color
Black
Marking
14 gauge EIA mounting rail || 16 gauge front door || 16 gauge post || 18 gauge rear door || 18 gauge roof || 18 gauge side panels
Mounting Mode
not rack-mountable
Provided Equipment
Baying hardware || Key(s) || Keyed-alike doors and side panels || Leveling feet || Mounting Hardware || Pre-installed casters || Side Panels
Number Of Rack Unit
42U
Product Or Component Type
rack enclosure
Permanent Permissible Load
2250 lb(US) dynamic || 3750 lb(US) static
Compatibility
2/4U Servers
Dynamic/Rolling Weight Capacity
2249.99 lb
Product Color
Black
Certifications & Standards
Free of Substances of Very High Concern above the threshold
Additional Information
Adjustable Front Vertical Mounting Rail, Adjustable mounting depth, Cable Access, Deep form factor (42"/1070mm), Door ventilation exceeds 830 in2 (5355 cm2), Expanded Cable Management, Facilitates overhead cable management, Facilitates overhead power distribution, Facilitates rear/vertical cable management, Mounts two APC metered PDUs in one rear channel, Multi-vendor equipment compatibility, Numbered U positions, Optimized depth, Protective grounding provisions, Provides Mounting Option for PDUs, Provides security between enclosures when bayed together, Quick release doors, Quick release side panels, Removable doors and side panels, Reversible doors, Rolls through a 2 meter doorway, Ships fully assembled, Split rear doors, Supports 24 inch floor tile spacing, Supports 600 mm floor tile spacing, Tool-less mounting, UBC Zone 4 stabilization provisions, Ventilated Doors with Scalable Cooling Options, Vertical Mounting Rails with square holes
Package Contents
NetShelter SX 42U Deep Rack Enclosure With Sides, Casters, Doors, Ground Studs, Installation Guide, Leveling feet, Mounting Hardware, Roof, Side Panels
Application/Usage
Storage, Server
Door Material Gauge
18
Roof/Top Material Gauge
18
Side Panel Material Gauge
18
Rail Material Gauge
14
Static/Stationary Weight Capacity
3750 lb
Product Line
NetShelter
Product Name
NetShelter SX Deep Rack Enclosure With Sides
Overall Load Capacity
3,750 lb
Includes Mounting Hardware
Yes

Description

Standard Enclosure, Product Type Rack Enclosure, Color Black, Finish Powder Coated, Material Steel, Mounting Location Free-Standing, Overall Height 78 3/8 in, Overall Width 23 5/8 in, Overall Depth 42 1/8 in, Overall Load Capacity 3,750 lb, Rack Units 42, Includes Keys, Keyed-Alike Doors and Side Panels, Leveling Feet, Casters, Side Panels, Includes Mounting Hardware Yes, Manufacturers Warranty Length 5 yr, Standards EIA-310E, UL 2416, UL 60950-1
