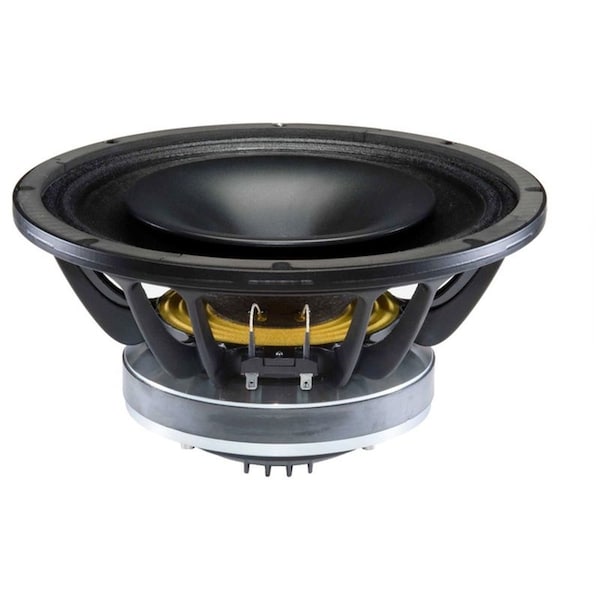

12-in Coaxial with Twin onboard voice coils for full range sound w/ weather resistant finish

  • Mfr # 12FHX76-8

  • Zoro # G816066075

product price:
$
841.99
/ea
Free Shipping & Returns
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
12FHX76-8
Zoro #
G816066075
UPC #
-
Country of Origin
Italy

Description

Nominal Diameter: 320 mm 12.0 in. Nominal Impedance: 8 Ohms. Minimum Impedance LF: 6.Ohms. Minimum Impedance HF: 7.8 Ohms. Frequency Range: 45 - 18000 Hz. Dispersion Angle: 160 Degrees x 40 Degrees. Woofer Cone Treatment: WP Waterproof Front Side. Magnet Material: FerriteSpecifications LF unit. LF Sensitivity: 98.0 dB. LF Nominal Power Handling: 350 W. LF Continuous Power Handling: 700 W. LF Voice Coil Diameter: 76 mm 3.0 in. LF Winding Material: Copper. LF Flux Density: 1.0 T. Former Material: Glass Fibre. Winding Depth: 16.5 mm 0.65 in. Magnetic Gap Depth: 8.0 mm 0.31 inSpecifications HF unit. HF Sensitivity: 106.0 dB. HF Nominal Power Handling: 80 W. HF Continuous Power Handling: 160 W. HF Voice Coil Diameter: 75 mm 3.0 in. HF Winding Material: Aluminium. HF Flux Density: 1.6 T. Diaphragm Material: Titanium. Recommended Crossover: 81.2 kHz. Inductance: 0.14 mHParameters. Resonance Frequency: 48 Hz. Overall Diameter: 315 mm 12.4 in. Bolt Circle Diameter: 298 mm 11.7 in. Baffle Cutout Diameter: 284 mm 11.14 in. Depth: 169 mm 6.65 in. Flange and Gasket Thickness: 13 mm 0.51 in. Net Weight: 8.5 kg 18.7 lb. Shipping Units: 1. Shipping Weight: 9.8 kg 21.61 lb. Shipping Box: 425x425x224 mm 16.73x16.73x8.82 in LF recone kit: RCK12FHX768Discover more. MF replacement diaphragm: MMD3BTN8M
