  9. Vertical Mill, 1Phase, 220V, 9 x 49In

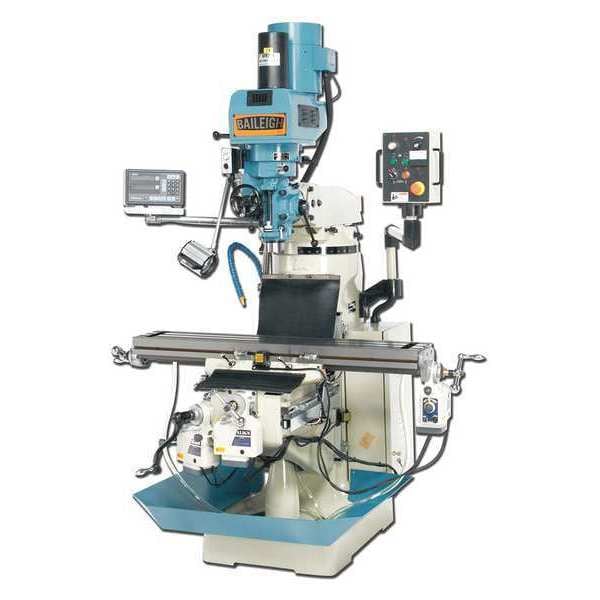

Baileigh Industrial Vertical Mill, 1Phase, 220V, 9 x 49In VM-949-1 - main

Vertical Mill, 1Phase, 220V, 9 x 49In

  • Mfr # VM-949-1

  • Zoro # G3476089

product price: $32,431.99
/ea
Additional $145.00 delivery surcharge applies per item.
See details

Key Features

Features
Mititoyo DRO
Type
MANUAL
Includes
Air Draw Bar, Coolant System with Catch Tray
Spindle to Table (In.)
18-7/32
Overall Depth
60 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VM-949-1
Zoro #
G3476089
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Overall Depth
60 in
Quill Dia. (In.)
3-3/8
Table Size (In.)
9 x 49
T-Slot Size (In.)
5/8
Overall Height
83 in
Overall Width
60 in
Table Width
49 in
Table Length
9 in
Overall Length
60 in
Quill Dia.
3 3/8 in
Spindle Travel Length
5 in
Spindle Taper Size
NST40
Ram Travel Length
12/19 in
Table Work Surface - Depth
9 in
Table Work Surface - Width
49 in
Quill Diameter
3 3/8 in
T-Slot Width
5/8 in

Details

Item
Vertical Milling Machine
Features
Mititoyo DRO
Type
MANUAL
Includes
Air Draw Bar, Coolant System with Catch Tray
Spindle to Table (In.)
18-7/32
Longitudinal Travel (In.)
12.00
Hz
60
Cross Travel (In.)
28-1/2
Max. Table Weight (lbs.)
2500
Spindle Speed (RPM)
60 to 4200
Motor HP
3
Phase
Single
Knee Travel (In.)
16
Number of T-Slots
3
Ram Travel (In.)
12-19/32
Quill Travel (In.)
5
Head Angle (Deg.)
230
Head Angle Front/Back (Deg.)
60
Spindle Taper
NT40
Voltage
220V
Right-Hand Head Tilt
90 Degrees
Backward Head Tilt Adjustment
45 Degrees
Max. Spindle Speed
4,200 RPM
Longitudinal Travel
12 in
Min. Spindle to Column Distance
8-3/8 in
Min. Spindle Speed
60 RPM
Horsepower
3 hp
Table Load Capacity
440 lb
Forward Head Tilt
45 Degrees
Max. Spindle to Table Distance
18 7/32 in
Left-Hand Head Tilt
90 Degrees
Max. Spindle To Column Distance
20-63/64 in
Number of Spindle Speeds
Variable
Series
VM-949
Head Swivel - Left
90 Degrees
Head Tilt - Forward
45 Degrees
Head Tilt - Backward
45 Degrees
Spindle to Table Distance
18 1/4 in
Included Powerfeeds
X-Axis Powerfeed, Y-Axis Powerfeed, Z-Axis Powerfeed
Spindle to Column Distance - Minimum
8 3/8 in
Maximum Ram Travel
5/8 in
Maximum Spindle Travel
5 in
Spindle Speed - Minimum
60 RPM
Head Swivel - Right
90 Degrees
Drawbar Style
Air-Powered
Maximum Longitudinal Travel
12 in
Includes Digital Readout
Digital Readout Included
Spindle Speed - Maximum
4,200 RPM
Digital Readout Included
Mitutoyo
Spindle To Column Distance - Maximum
21 in

Description

Vertical Milling Machine, Table Length 9 in, Table Width 49 in, 3 hp, Table Load Capacity 440 lb, Phase Single, Voltage 220V, Longitudinal Travel 12 in, Min. Spindle Speed 60 RPM, Max. Spindle Speed 4,200 RPM
