  11. Sensor 8" Mount, 3 Hole Bathroom Faucet, Chrome
This item is Discontinued.

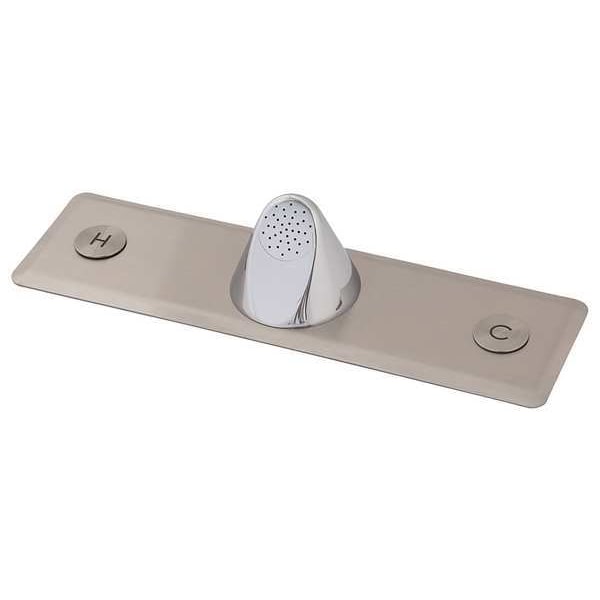

Bestcare Sensor 8" Mount, 3 Hole Bathroom Faucet, Chrome WH3374-PPZ-8IN

Sensor 8" Mount, 3 Hole Bathroom Faucet, Chrome (Discontinued)

  • Mfr # WH3374-PPZ-8IN
  • Zoro # G6153901
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WH3374-PPZ-8IN
Zoro #
G6153901
UPC #
883232437673
Country of Origin
United States

Dimensions

Height
2-1/4"
Manufacturers Warranty Length
1 yr
Overall Height
2"
Spout Length
2 in
Spout Height
2 in
Water Inlet Connection Size
1/2 in
Max. Installation Surface Thickness
1 in
For Mounting Hole Diameter - Minimum
1 5/16 in
For Mounting Hole Diameter - Maximum
1 1/2 in
Spout Height - Maximum
2 in
For Surface Thickness - Maximum
1 in
Inlet Connection Size
1/2 in

Details

Faucet Operation
Sensor
Number of Holes
3
ADA Compliant
Yes
Application
Medical
Finish
Chrome
Handle Type
Push Button
Flow Rate
0.7 gpm
Faucet Spout Shape
Cone
Item
Bathroom Sensor Faucet
Handle Material
Stainless Steel
Number of Handles
0
Body Material
Brass
Voltage
9V DC
Flow Outlet Type
Shower Spray
Flow Outlet Type - Faucet
Spray
CEC Compliant
CEC Compliant
Commercial / Residential
Commercial
Faucet Type
Bathroom Sink Faucet
ADA Compliance
Not ADA Compliant
Battery Charger CEC Compliant
CEC Compliant
Faucet Spout
Conical
Residential / Commercial
Commercial
Faucet Finish
Chrome
Standards
UPC
Ligature Resistant
Yes
Faucet Handle Type
Metering
Valve Type
Compression
Replacement Cartridge
None
Green Environmental Attribute
Product Contains a Minimum of 30% Post-Consumer Recycled Content
Mounting Type - Faucet
Deck
Power Source
Plug-In
Flow Outlet Type (Faucet)
Spray
Includes
AC transformer, Escutcheon panel, metering, non-hold open type Acorn Air-Control valve
Drain Type
None
Connection
1/2" NPS
Features
Designed and developed to retrofit existing lavatories or it can be specified for new design Faucet assembly requires (3) 1 1/2 in diameter holes on 8 in centerset. Conical faucet is chrome plated brass and provides vandal and suicide resistance. Valve is an electronic valve with Piezo pushbutton(s) which require less than 5 pounds of force to activate valve. Valve is metering with non-hold open feature with a timing range is 0-100 seconds. Valve includes a 0.7 gpm flow control and can be remotely located up to 10 feet from the operating pushbutton. Faucet escutcheon is fabricated from 14 gauge, type 304 stainless steel with a satin finish.
Valve Type - Faucets
Solenoid Valve
Max. Mounting Hole Center Distance
8 in
Series
WH3374
Faucet Handle Material
Stainless Steel
Temperature Control
Non-Adjustable Temperature
Faucet Body Material
Brass
Faucet Activation
Manual
Water Inlet Connection Type
Male NPT
Time Out
100 sec
Includes Transformer
Transformer Included
Mounting Hole Center-to-Center Distance - Maximum
8 in
Water Supply Type
Hot and Cold Lines
Ligature Resistance
Ligature-Resistant
Operation Method
Manual
CEC Compliance
CEC Compliant
Number of Mounting Holes
3
Warranty
1 yr
Spout Shape
Cone
Flow Type
Spray
Product Type
Manual Faucet
Flow Rate - Maximum
0.7 gpm
Inlet Connection Type
NPT
Compatible Cartridge Manufacturer Part Number
None
For Location
Bathroom

Description

Bathroom Faucet, Faucet Operation Electronic, Number of Handles 2, Handle Type Push Button, Connection 1/2 In. NPS, 0.7 gpm Flow Rate, Number of Holes 3, Mounting Hole Center to Center 8 In., Body Material Stainless Steel, Faucet Spout Conical, ADA Compliant No, Voltage 9, Valve Type Electronic, Finish Chrome, Overall Height 2 In., Flow Outlet Type Shower Spray, Replacement Cartridge No, Manufacturers Warranty Length 1 yr., Standards ADA Compliant, Commercial
