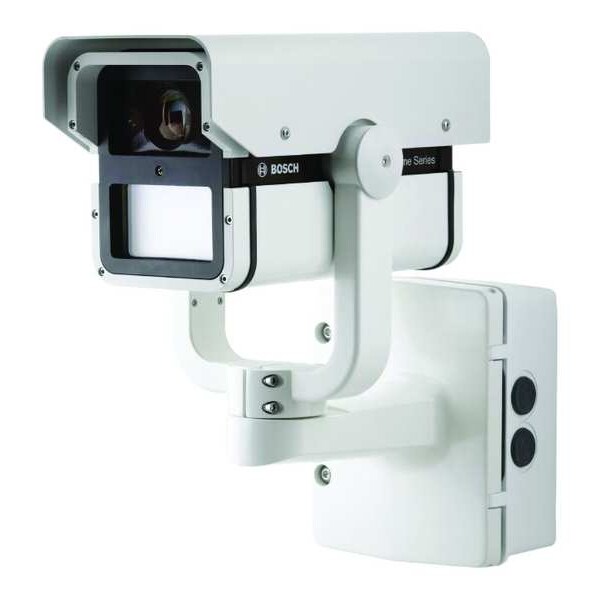

Bosch IP Camera, 27W, Outdoor, Wall NAI-90022-AAA

IP Camera, 27W, Outdoor, Wall (Discontinued)

  • Mfr # NAI-90022-AAA
  • Zoro # G2028927
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
NAI-90022-AAA
Zoro #
G2028927
UPC #
800549702256
Country of Origin
Portugal

Dimensions

Depth
12 13/64 in
Height
15 13/16 in
Width
7 39/64 in
Focal Length
10.00 to 23.00 mm
IR Illuminator Wavelength
850 nm
Overall Width
7 5/8 in
Overall Length
12 1/8 in
Overall Height
15 7/8 in
Minimum Focal Length
10 mm
Maximum Focal Length
23 mm

Details

Item
IP Camera
For Use With
Video Surveillance Systems
HD Resolution
1080p
Camera Type
Color
Field of View
8.3°deg, to 18°deg,
Camera Design
Bullet
Lens
Varifocal
Power Required
12V DC, 24V DC
Camera Resolution
2 Megapixel
Connector Type
Fast Ethernet, Wired
Line Resolution
2 MP
Min. Light Level
0 lux
Power Consumption
27 W
S/N Ratio
More than 50dB
IP Rating
IP66
Standards
C-tick AS/NZS CISPR 22 (equal to CISPR 22), CAN/CSA-C22.2 NO. 60950-1, CE, CE, FCC, UL, cUL, C-tick, CB, VCCI, CIE/IEC 62471, EC 60068-2-5 Edition 2.0:2010,Procedure C, EMC directive 2004/108/EC, EN 50121-4, EN 50130-4, EN 50132-5-2, EN 55022/24 class B, EN 60950-1, FCC Part15 Subpart B, Class B, ICES-003 class B, IEC 60068-2-6:2007, IEC 62676-2-3, UL 60950-1, UL Listed, UL/cUL 60950-22, IEC50130-5, VCCI J55022 V2/V3
Luminance Factor
0 lux
Power Supply
Not Included
Indoor / Outdoor
Outdoor
Camera Body Color
White
Pixels
1280 (H) x 720 (V); 1920 (H) x 1080 (V); 256 (H) x 144 (V); 432 (H) x 240 (V); 512 (H) x 288 (V); 704 (H) x 480 (V); 768 (H) x 432 (V); 854 (H) x 480 (V)
Day/Night Capable
Day/Night
Mount
Wall
Operating Temp. Range
-4 Degrees to 122 Degrees F
Illumination
Yes
Video Compression Format
H.264, MJPEG
Color
White
Features
All-Weather, Vandal-Proof Design
Input Voltage
24 V AC
Indoor/Outdoor
Indoor/Outdoor
Mounting
Pole Mount, Corner Mount
Digital Video Camera Image Sensor
CMOS
Camera Type (Needs to be edited)
Color, Monochrome
Weight
14.55 lb
Voltage
12V DC, 24V AC
Minimum Operating Temperature
-40 Degrees F
Image Sensor
1/2.7 CMOS
Resolution
1080p, 480p, 720p
Lens Type
Varifocal
Minimum Light Level
0 lux
Input Type
No Inputs Included
Body Color
White
Color Display
Color
Maximum Detection Distance
394 ft
Indoor/Outdoor Usage
Indoor, Outdoor
Maximum Operating Temperature
122 Degrees F
Includes Power Supply
No
Maximum Viewing Angle
34 Degrees
Output Type
No Outputs Included
Night Capable
Day and Night
Minimum Viewing Angle
18 Degrees
Operating Voltage
12V DC, 24V AC

Description

IP Camera, Camera Design Bullet, Lens Type Varifocal, Maximum Focal Length 23 mm, Resolution 1080p, 480p, 720p, Maximum Viewing Angle 34 Degrees , Minimum Viewing Angle 18 Degrees , Minimum Focal Length 10 mm, Maximum Detection Distance 394 ft, Image Sensor 1/2.7 CMOS, Body Color White, Color Display Color, Features All-Weather, Vandal-Proof Design, For Use With Video Surveillance Systems, Includes Power Supply No, Indoor/Outdoor Usage Indoor, Outdoor, Input Type No Inputs Included
