  11. Ground Connector, 2/0AWG, 2.32In

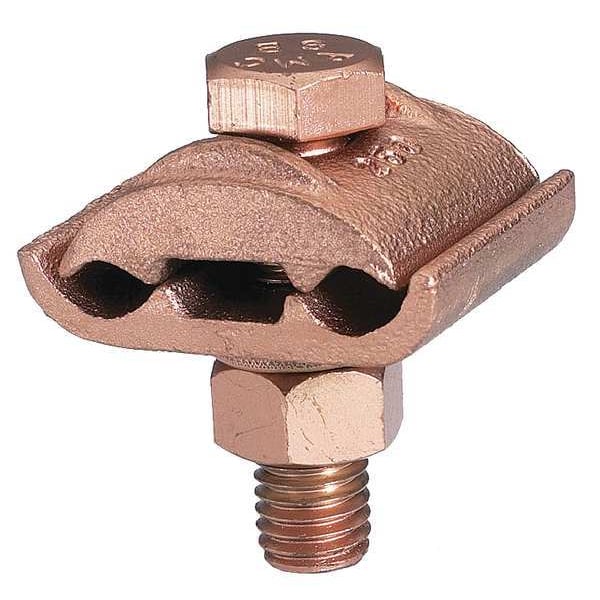

Burndy Ground Connector, 2/0AWG, 2.32In GC2929 - main

Ground Connector, 2/0AWG, 2.32In

  • Mfr # GC2929

  • Zoro # G4680864

product price: $96.25
/ea
Free Shipping & Returns

Key Features

Item - Grounding Connector
Grounding Connector
Type - Grounding Connector
Mechanical
Type
COMMERCIAL
Length
1.25 in
Wire Size - Grounding
2/0 AWG to 250 kcmil
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GC2929
Zoro #
G4680864
UPC #
781810231722
Country of Origin
Mexico

Dimensions

Length
1.25 in
Wire Size - Grounding
2/0 AWG to 250 kcmil
Conductor Size
250 kcmil to 2/0
Width
2.04 in
Grounding Wire Size
2/0 AWG to 250 kcmil SOL, 2/0 AWG to 250 kcmil STR
For Maximum Ground Conductor Wire Size
250 kcmil
For Minimum Ground Conductor Wire Size
2/0 AWG SOL
Overall Length
1 1/4 in
Overall Height
2 5/16 in
Overall Width
2 1/32 in
Height
2.32 in
Dimension - L Length Overall mm
32 mm
Conductor - Copper Solid Size
2/0 AWG;3/0 AWG;4/0 AWG
Conductor - Copper Str Size
2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
Conductor - Copper Str Size Range
2/0 AWG-250 kcmil
Dimension - Width mm
52 mm
Dimension - Width fraction
2 in
Dimension - Height inch
2.32 in
Dimension - Length Overall inch
1.25 in
Conductor - Copper Solid Size Range
2/0 AWG - 250 KCMIL
Dimension - Width inch
2.04 in

Details

Item
Mechanical Lug
Item - Grounding Connector
Grounding Connector
Type - Grounding Connector
Mechanical
Type
COMMERCIAL
Material
Copper
Grounding Wires Connected To
1/4 in Bar
Standards
UL Listed Direct Burial, UL467
Material - Grounding Connector
Copper Alloy
Number of Wires - Grounding
2
Material of Construction
Copper Alloy
Torque
480 in-lb
Accessory Type
Grounding Connector
For Use With
Copper Conductors, Flat Bar
Description/Special Features
Direct Burial
Application
For Joining A Wide Range Of Two Parallel Copper Cables, Direct Burial In Concrete Or Ground
Certification - UL Listed Direct Burial
Yes
Plating Type
Unplated
Installation Torque Recommended in-lb
480 lb-in
Industry Standard(s)
UL467
Material Type - Screw
DURIUMâ„¢ Silicon Bronze
Physical Attribute - Screw Type
Hexagonal Bolt
Certification - CSA Approved
No
Plated
N
UL Listed
Yes

Description

Grounding Connector, Grounding Wire Size 2/0 AWG to 250 kcmil SOL, 2/0 AWG to 250 kcmil STR, Material Copper, Number of Wires - Grounding 2, Description/Special Features Direct Burial, For Maximum Ground Conductor Wire Size 250 kcmil, For Minimum Ground Conductor Wire Size 2/0 AWG SOL, For Use With Copper Conductors, Flat Bar, Grounding Wires Connected To 1/4 in Bar, Standards UL Listed Direct Burial, UL467, Type - Grounding Connector Mechanical, Accessory Type Grounding Connector
