Burndy

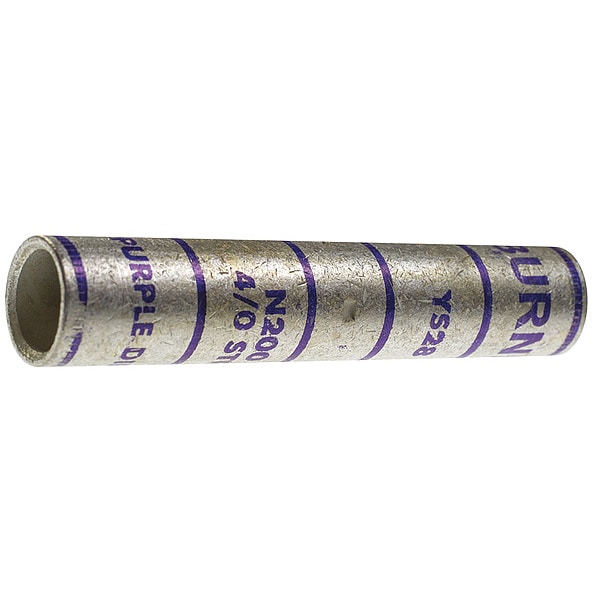

Long-Barrel Splice, 4/0 AWG Wire Gauge
Mfr # YS28
Zoro # G5508872
product price: $9.39
/ea
$9.39
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Wire Gauge 4/0 AWG
- Color Code Purple
- Die Code 15
- Material Copper
- Length 3.57 in
Product Information
- Brand Burndy
- MFR # YS28
- Zoro # G5508872
- UPC # 781810507803
- Country of Origin United States
- Category Crimp Sleeves
Dimensions
| Length | 3.57 in |
| Outside Dia. | 0.69 in |
| Strip Length | 1 11/16 in |
| Maximum Wire Size | 4/0 AWG |
| Minimum Wire Size | 4/0 AWG |
| Barrel Size | Long |
| Maximum Wire Insulation Diameter | 0.69 in |
| Barrel Outside Diameter | 0.69 in |
| Overall Length | 3.57 in |
Details
Description
Long-Barrel Splice, Barrel Finish Tin Plated, Barrel Size Long, Color Code Purple, Die Code 15, For Conductor Material Copper, For Wire Type Stranded, Material Copper, Maximum Voltage 35 kV, Minimum Wire Size 4/0 AWG, Maximum Wire Size 4/0 AWG, Number of Crimps 2, Overall Length 3.57 in, Maximum Conductors 2, Maximum Operating Temperature 194 Degrees F, RoHS Compliant Yes, Seam Style Seamless, Standards CSA Certified, UL Listed, Barrel Outside Diameter 0.69 in
