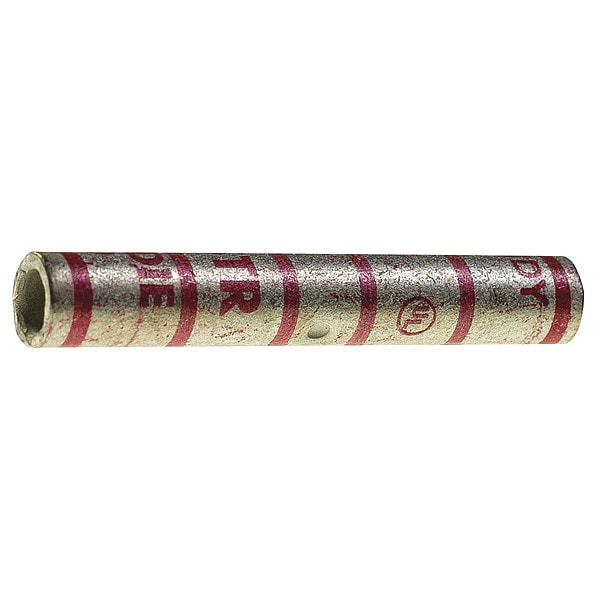

Open Barrel Splice, Red, Copper, 35 kV
Mfr # YS8C
Zoro # G5498101
product price:Â
$
4.45
/ea
Key Features
Wire Gauge
8 AWG
Color Code
Red
Die Code
49
Material
Copper
Length
1.75 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- YS8C
- Zoro #
- G5498101
- UPC #
- 781810507414
- Country of Origin
- United States
- Item
- Open Barrel Splice
- Wire Gauge
- 8 AWG
- Color Code
- Red
- Die Code
- 49
- Material
- Copper
- Standards
- CSA Certified, UL Listed
- RoHS Compliant
- Yes
- Contact Finish
- Tin
- Maximum Voltage
- 35 kV
- Special Features
- Center Conductor Stops, High Pull Out Force, Oil Stop: No; Tapered End: No
- Contact Material
- Copper
- Maximum Operating Temperature
- 194 Degrees F
- Termination Style
- Crimp
- Maximum Conductors
- 2
- Seam Style
- Seamless
- For Conductor Material
- Copper
- Barrel Finish
- Tin Plated
- Number of Crimps
- 2
- Compatible Installation Tool Model Number
- MD6, MD7-34R, OUR840, PAT81KFT-18V, Y35, Y39, Y46, Y750, Y81KFT, Y81KFTMBH
- For Wire Type
- Stranded
Description
Long-Barrel Splice, Barrel Finish Tin Plated, Barrel Size Long, Color Code Red, Die Code 49, For Conductor Material Copper, For Wire Type Stranded, Material Copper, Maximum Voltage 35 kV, Minimum Wire Size 8 AWG, Maximum Wire Size 8 AWG, Number of Crimps 2, Overall Length 1.75 in, Maximum Conductors 2, Maximum Operating Temperature 194 Degrees F, RoHS Compliant Yes, Seam Style Seamless, Standards CSA Certified, UL Listed, Barrel Outside Diameter 0.27 in
