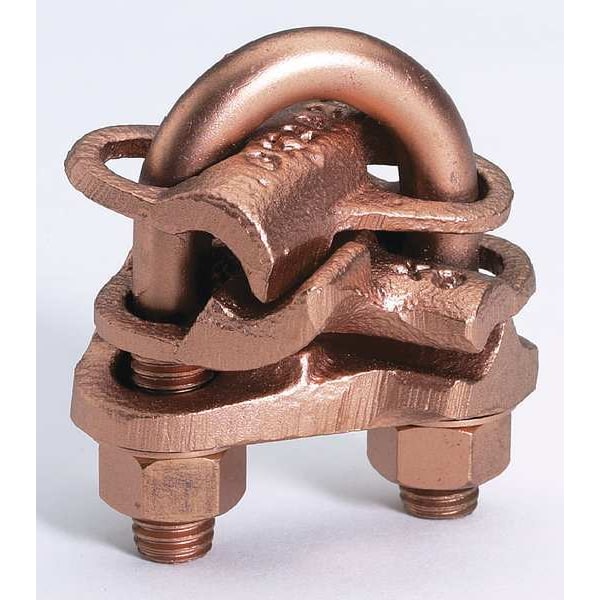

Connector, Copper, Overall L 2.75in

  • Mfr # GX2929

  • Zoro # G4672796

product price:
$
152.99
/ea
Free Shipping & Returns

Key Features

Item - Grounding Connector
Wire to Wire Grounding Connector
Type - Grounding Connector
Mechanical
Type
COMMERCIAL
Wire Size - Grounding
2/0 AWG to 250 kcmil
Material
Copper
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
GX2929
Zoro #
G4672796
UPC #
781810260692
Country of Origin
Mexico

Dimensions

Wire Size - Grounding
2/0 AWG to 250 kcmil
Conductor Size
250 kcmil to 2/0
Grounding Wire Size
1/0 AWG to 250 kcmil STR, 2/0 to 4/0 AWG SOL
For Maximum Ground Conductor Wire Size
250 kcmil
Overall Height
2 3/4 in
Overall Length
1 7/8 in
For Minimum Ground Conductor Wire Size
2/0 AWG SOL
Overall Width
1 7/8 in
For Rod Dia.
1/2 in
Conductor - Copper Str Size A
1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
Dimension - Length Overall inch
1.88 in
Dimension - Width mm
48 mm
Dimension - Height fraction
2-3/4 in
Conductor - Copper Solid Size B Range
2/0 AWG-4/0 AWG
Conductor - Copper Solid Size A
2/0 AWG;3/0 AWG;4/0 AWG
Conductor - Copper Tube Std Size
0.5
Conductor - Copper Solid Size B
2/0 AWG;3/0 AWG;4/0 AWG
Dimension - Height inch
2.75 in
Dimension - L Length Overall mm
48 mm
Conductor - Rod Size Range
1/2 in
Conductor - Copper Solid Size A Range
2/0 AWG-4/0 AWG
Conductor - Copper Str Size B Range
1/0 -250 kcmil
Conductor - Copper Str Size B
1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
Dimension - Width fraction
1-7/8 in
Conductor - Rod Size
1/2 in
Dimension - Width inch
1.88 in
Conductor - Copper Str Size A Range
1/0 -250 kcmil
Wire Rope Length
1 7/8 in
Length
1 7/8 in

Details

Item
Wire to Wire Grounding Connector
Item - Grounding Connector
Wire to Wire Grounding Connector
Type - Grounding Connector
Mechanical
Type
COMMERCIAL
Material
Copper
Standards
UL Listed Direct Burial, UL467
Grounding Wires Connected To
2/0 AWG Solid Wire to 250 kcmil Solid Wire
Material - Grounding Connector
Copper Alloy
Number of Wires - Grounding
2
Material of Construction
Copper Alloy
Description/Special Features
Cross Grid Connector, Direct Burial
For Use With
Copper Conductors
Torque
240 in-lb
Accessory Type
Grounding Connector
Application
For Cross Connecting A Wide Range Of Copper Cable, Direct Burial In Earth Or Concrete
U Bolt Type
222
Installation Torque Recommended in-lb
240 LBS/in
Industry Standard(s)
UL467
Standards - Industry Standards Met
UL467
Material Type - Screw
DURIUMâ„¢ Silicon Bronze
Conductor Type
CU C Str-Size ACU C Solid-Size ACU C Str-Size BCU C Solid-Size B
Certification - UL Listed Direct Burial
Yes
UL Listed
Yes
Plated
N
Plating Type
Unplated

Description

Wire to Wire Grounding Connector, Grounding Wire Size 1/0 AWG to 250 kcmil STR, 2/0 to 4/0 AWG SOL, Material Copper, Number of Wires - Grounding 2, Description/Special Features Cross Grid Connector, Direct Burial, For Maximum Ground Conductor Wire Size 250 kcmil, For Minimum Ground Conductor Wire Size 2/0 AWG SOL, For Use With Copper Conductors, Grounding Wires Connected To 2/0 AWG Solid Wire to 250 kcmil Solid Wire, Standards UL Listed Direct Burial, UL467, Type - Grounding Connector Mechanical
