This item is Discontinued.

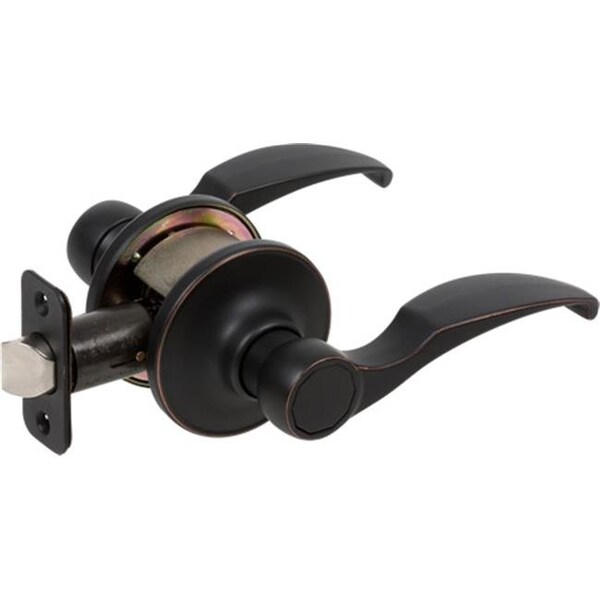

Callan Callan2 G2KI5107R Kendall Series Grade 2 Keyed Entry Lever Set; Edged Brass G2KI5107R

This item is Discontinued.

Callan

Callan2 G2KI5107R Kendall Series Grade 2 Keyed Entry Lever Set; Edged Brass (Discontinued)

Mfr # G2KI5107R
Zoro # G503715538
UPC # 694036491026
Country of Origin China
Category Keyed Entry Door Handles
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
G2KI5107R
Zoro #
G503715538
UPC #
694036491026
Country of Origin
China

Description

Keyed entry knobs and levers are able to be locked from the exterior with a key, and then locked or unlocked from the inside with a turn-button. Primarily used for securing entrances. Callan 2's Kingston Series is a stunning example of modern design meeting classic, organic overtones. Designed for ease of use as well as high security.

Features
  • Function - Entrance
  • Combination Screws that Suit both Wood or Metal Door Mounting
  • Heavy Duty All Metal Construction
  • Protective Sleeve
  • Interlocking Chassis
  • Patented GR2 Adjustable Latch
  • Reinforced Spring Assembly
  • Reversible Handing
  • Finish - Edged Brass
  • Dimension - 4.12 x 1.94 x 2.62 in.
  • Projection from the door - 2.5
  • Item Weight - 1.8 lbs.
Specification
  • Door Prep
    • Cross bore - 2.12 in.
    • Edge bore - 1 in.
    • Latch face: 1 x 2.25 in.
  • Backset Fits - 2.37 and 2.75 in.
  • Door Thickness - 1.37 to 1.75 in. door standard
  • Cylinder SC1 5-pin standard; KW1 5-pin optional, Entries packed KA5
  • Latches
    • Entrance: 2.37 & 2.75 in. adjustable
    • Faceplate: 1 x 2.25 in. Rod. & Sq. corner
    • Bolt: 0.5 in. throw
  • Strikes - 1.75 x 2.25 in. full lip Rod. & Sq. corner.
  • Includes Reinforcement Plate.
  • Wood Screws - Combination screws that suit both wood or metal door mounting., Includes 1.5 in. Security Screws.
  • Grade 2 Features:
    • Protective collar.
    • Interlocking installation guides.
    • Reinforced spring assembly.

Restrictions
