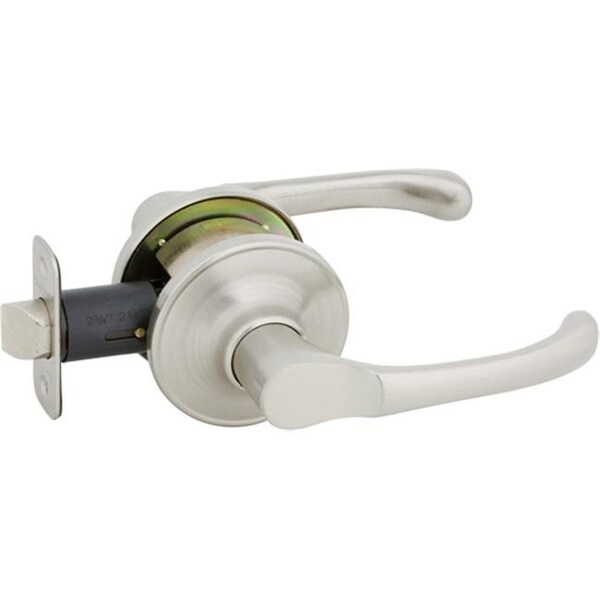

Callan2 G2KN5021 Newport Series Grade 2 Privacy Lever Set; Satin Nickel (Discontinued)

Privacy style knobs and levers are used to secure the interior rooms of a home. An inside thumb turn both locks and unlocks the hardware, which can also be unlocked from the outside in emergencies by rotating the exterior privacy mechanism. Perfect for master bedrooms, bathrooms, offices/dens, or anywhere privacy is needed. Callan 2's Newport Series offers a stunning display of elegance and craftsmanship. Designed for ease of use as well as high security.

• Function - Privacy
• Combination Screws that Suit both Wood or Metal Door Mounting
• Heavy Duty All Metal Construction
• Protective Sleeve
• Interlocking Chassis
• Patented GR2 Adjustable Latch
• Reinforced Spring Assembly
• Reversible Handing
• Finish - Satin Nickel
• Item Weight - 1.9 lbs.

• Door Prep
  • Cross bore - 2.12 in.
  • Edge bore - 1 in.
  • Latch face: 1 x 2.25 in.
• Backset Fits - 2.37 and 2.75 in.
• Door Thickness - 1.37 to 1.75 in. door standard
• Cylinder SC1 5-pin standard; KW1 5-pin optional, Entries packed KA5
• Latches
  • Privacy: 2.37 & 2.75 in. adjustable
  • Faceplate: 1 x 2.25 in. Rod. & Sq. corner
  • Bolt: 0.5 in. throw
• Strikes - 1.75 x 2.25 in. full lip Rod. & Sq. corner. Includes Reinforcement Plate.
• Wood Screws - Combination screws that suit both wood or metal door mounting. Includes 1.5 in. Security Screws.
• Grade 2 Features
  • Protective collar.
  • Interlocking installation guides.
  • Reinforced spring assembly.
