  9. Exhaust Fan, Hazardous Location, 18 In
Shop All Exhaust and Supply Fan Accessories
Canarm

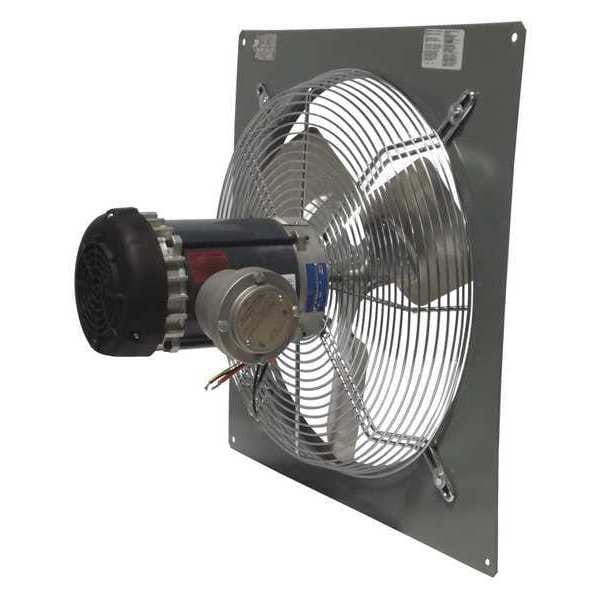

Exhaust Fan, Hazardous Location, 18 In

product price: $729.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Drive Package With Motor Included No
  • Inside Dia. (In.) 22 in
  • Exhaust/Supply Fan Motor HP 1/3 hp
  • Hz 60
  • Full Load Amps 6.6/3.1-3.3
See all product information

Product Information

Dimensions

Inside Dia. (In.) 22 in
Max. Depth (In.) 14 in
Dimension C (In.) 22 in
Height (In.) 23 1/4 in
Venturi Clearance Dia. (In.) 1/8 in
Shaft Dia. (In.) 1/2 in
Blade Dia. 18 in
Flange Width (In.) 1 1/2 in
Dimension B (In.) 14 in
Dimension D (In.) 22 in
Venturi Depth (In.) 5/8 in
Outside Dia. (In.) 23 1/4 in
Width (In.) 23 1/4 in
Dimension A (In.) 23 1/4 in
Flange Width 1 1/2 in
Venturi Depth 5/8 in
Overall Depth 14 in
Overall Height 23 1/4 in
Shaft Diameter 1/2 in
Blade Diameter 18 in
For Cut-Out Width 22 in
Manufacturer Warranty Length 1 yr
Venturi Diameter 1/8 in
For Cut-Out Height 22 in
For Cut-Out Diameter 22 in
Overall Diameter 23 1/4 in
Overall Width 23 1/4 in

Details

Item Panel Mounted Hazardous Location Exhaust Fan
Drive Package With Motor Included No
Exhaust/Supply Fan Motor HP 1/3 hp
Hz 60
Full Load Amps 6.6/3.1-3.3
Drive Package Included No
Frame Finish Powder Coated
Max. Ambient Temp. (F) 104 Degrees F
Phase 1
Frame Material Steel
Motor RPM 1,725 RPM
Exhaust/Supply Fan Item Exhaust Fan
Propeller Material Aluminum
CFM @ 0.250-In. SP 2,625 cfm
Includes EPFC Motor Enclosure, Explosion Proof Motor, Wire Guard
CFM @ 0.125-In. SP 2,950 cfm
Sones @ 0.000-In. SP @ 5 Ft. 23
Type Explosion Proof
CFM @ 0.000-In. SP 3,200 cfm
Hazardous Location Class Class I, Div 1, Group C and D; Class II, Div 1, Group F and G
Motor Enclosure Totally Enclosed Air Over
Watts 250 W
Motor Type Explosion Proof
Number of Blades 3
Bearing Type Ball
Mounting Holes O.C. (In.) 22 in
Fan Voltage 115/208-230V AC
For Use With General Ventilation Applications, Hazardous Locations, Explosion Proof, Panel Mounted Exhaust Fan
Mounting Position Horizontal
Motor Insulation Class B
Agency Compliance cETLus
Standards OSHA Compliant
Includes Motor No
Motor Horsepower 1/3 hp
Drive Type Direct Drive
Exhaust Airflow @ 0.100 in SP 3,050 cfm
Nameplate Voltage 115/208-230V AC
Number of Speeds 1
Electrical Connection Hardwired
Exhaust Airflow @ 0.000 in SP 3,200 cfm
Noise Level @ 0.100 in SP @ 5 ft 23 sones
Housing Finish Powder-Coated
Ventilation Type Exhaust
Maximum Noise Level 23 sones
Guard Finish Chrome
Maximum Ambient Operating Temperature 104 Degrees F
Housing Material Steel
Includes Grill No
Number of Fans 1
Mounting Orientation Horizontal
Includes Dehumidistat No
Wattage 250 W
Exhaust Airflow @ 0.250 in SP 2,625 cfm
Discharge Direction Horizontal
Supply Airflow @ 0.000 in SP 3,200 cfm
Fan Style Panel
Maximum Airflow 3,200 cfm
Guard Type Intake
Vent Design Ductless
Speed Controllable No
Assembled Assembled
Blade Material Aluminum
Motor Speed 1,725 RPM
Full Load Current 0.5 A
Frequency 60 Hz
Noise Level @ 0.000 in SP @ 5 ft 23 sones
Exhaust Airflow @ 0.125 in SP 2,950 cfm
Control Type Toggle Switch
Guard Material Steel
Method of Construction Stamped
Speed Control No
Voltage 115/208-230

Description

Panel Mounted Hazardous Location Exhaust Fan, Assembled Assembled, Blade Diameter 18 in, Blade Material Aluminum, Control Type Toggle Switch, Drive Type Direct Drive, Duct Diameter Not Applicable, Exhaust Airflow @ 0.000 in SP 3,200 cfm, For Cut-Out Height 22 in, For Cut-Out Width 22 in, Frame Finish Powder Coated, Frame Material Steel, Guard Finish Chrome, Guard Material Steel, Guard Type Intake, Hazardous Location Class Class I, Div 1, Group C and D; Class II, Div 1, Group F and G
