  9. Exhaust Fan, Hazardous Location, 20 In
Shop All Exhaust and Supply Fan Accessories
Canarm

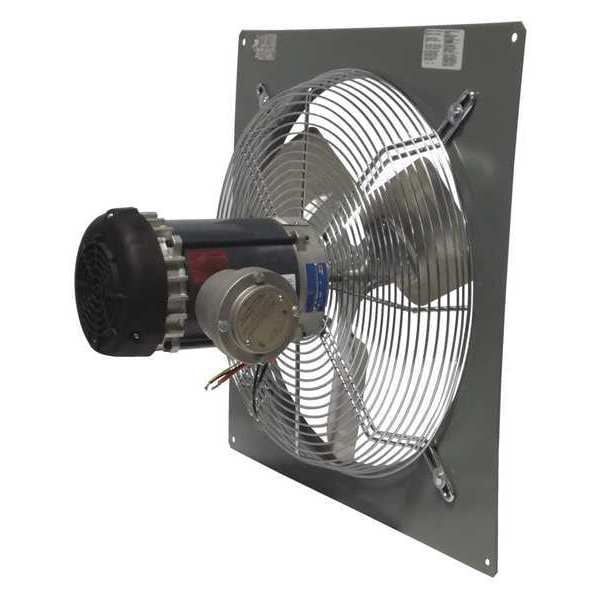

Exhaust Fan, Hazardous Location, 20 In

product price: $727.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Drive Package With Motor Included No
  • Outside Dia. (In.) 25 1/4 in
  • Venturi Clearance Dia. (In.) 1/8 in
  • Frame Material Steel
  • Sones @ 0.000-In. SP @ 5 Ft. 30
See all product information

Product Information

Dimensions

Outside Dia. (In.) 25 1/4 in
Venturi Clearance Dia. (In.) 1/8 in
Dimension A (In.) 25 1/4 in
Width (In.) 25 1/4 in
Blade Dia. 20 in
Dimension C (In.) 24 in
Venturi Depth (In.) 5/8 in
Inside Dia. (In.) 24 in
Height (In.) 25 1/4 in
Dimension D (In.) 24 in
Shaft Dia. (In.) 1/2 in
Flange Width (In.) 1 1/2 in
Max. Depth (In.) 14 in
Dimension B (In.) 14 in
Flange Width 1 1/2 in
Venturi Depth 5/8 in
Shaft Diameter 1/2 in
Overall Depth 14 in
Overall Width 25 1/4 in
Manufacturer Warranty Length 1 yr
Venturi Diameter 1/8 in
For Cut-Out Height 24 in
For Cut-Out Diameter 24 in
Overall Height 25 1/4 in
For Cut-Out Width 24 in
Overall Diameter 25 1/4 in
Blade Diameter 20 in

Details

Item Panel Mounted Hazardous Location Exhaust Fan
Drive Package With Motor Included No
Exhaust/Supply Fan Item Exhaust Fan
Frame Material Steel
Sones @ 0.000-In. SP @ 5 Ft. 30
CFM @ 0.250-In. SP 3,140 cfm
Motor Insulation Class B
Motor Enclosure Totally Enclosed Air Over
Type Explosion Proof
Bearing Type Ball
Motor Type Explosion Proof
Max. Ambient Temp. (F) 104 Degrees F
Includes Explosion Proof Motor, Wire Guard
Number of Blades 3
Hazardous Location Class Class I, Div 1, Group C and D; Class II, Div 1, Group F and G
Mounting Position Horizontal
Mounting Holes O.C. (In.) 24 in
Watts 250 W
Motor RPM 1,725 RPM
Fan Voltage 115/208-230V AC
Propeller Material Aluminum
Phase 1
Exhaust/Supply Fan Motor HP 1/3 hp
For Use With General Ventilation Applications, Hazardous Locations, Explosion Proof, Panel Mounted Exhaust Fan
Full Load Amps 6.6/3.1-3.3
CFM @ 0.000-In. SP 3,640 cfm
CFM @ 0.125-In. SP 3,360 cfm
Drive Package Included No
Agency Compliance cETLus
Frame Finish Powder Coated
Hz 60
Standards OSHA Compliant
Motor Speed 1,725 RPM
Method of Construction Stamped
Includes Motor No
Mounting Orientation Horizontal
Exhaust Airflow @ 0.250 in SP 3,140 cfm
Assembled Assembled
Exhaust Airflow @ 0.100 in SP 3,440 cfm
Motor Horsepower 1/3 hp
Housing Material Steel
Maximum Airflow 3,640 cfm
Exhaust Airflow @ 0.000 in SP 3,640 cfm
Exhaust Airflow @ 0.125 in SP 3,360 cfm
Wattage 250 W
Number of Speeds 1
Blade Material Aluminum
Vent Design Ductless
Frequency 60 Hz
Guard Finish Chrome
Control Type Rotary Dial
Discharge Direction Horizontal
Maximum Noise Level 30 sones
Includes Grill No
Guard Material Steel
Electrical Connection Hardwired
Nameplate Voltage 115/208-230V AC
Speed Controllable No
Fan Style Panel
Ventilation Type Exhaust
Full Load Current 0.5 A
Guard Type Intake
Noise Level @ 0.100 in SP @ 5 ft 30 sones
Includes Dehumidistat No
Maximum Ambient Operating Temperature 104 Degrees F
Number of Fans 1
Drive Type Direct Drive
Supply Airflow @ 0.000 in SP 3,640 cfm
Noise Level @ 0.000 in SP @ 5 ft 30 sones
Housing Finish Powder-Coated
Speed Control No
Voltage 115/208-230

Description

Panel Mounted Hazardous Location Exhaust Fan, Assembled Assembled, Blade Diameter 20 in, Blade Material Aluminum, Control Type Rotary Dial, Drive Type Direct Drive, Duct Diameter Not Applicable, Exhaust Airflow @ 0.000 in SP 3,640 cfm, For Cut-Out Height 24 in, For Cut-Out Width 24 in, Frame Finish Powder Coated, Frame Material Steel, Guard Finish Chrome, Guard Material Steel, Guard Type Intake, Hazardous Location Class Class I, Div 1, Group C and D; Class II, Div 1, Group F and G
