ICM CONTROLS CONTROL BOARD

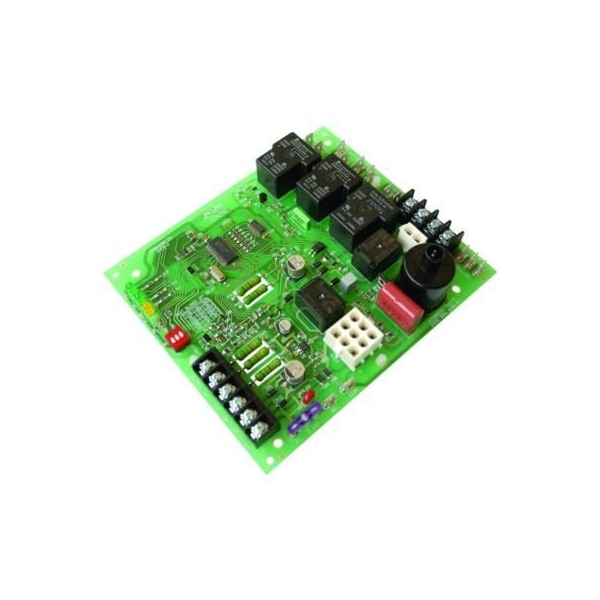

Furnace Control Control - replacement for Rheem 62-24140-04 control boards **DETAILS:** * Low cost form, fit and functional replacement for Rheem: 62-24140-04 * Direct Spark Ignition (DSI) control * Microprocessor-based * Controls inducer motors, air cleaner (if equipped), humidifier (if equipped), spark ignitor, and the gas valve * Monitors timing, trial for ignition, system switches, flame sensing, and lockout * 100-percent lockout safety feature * Compatible with LP or Natural gas * LED indication for status and fault codes to aid in troubleshooting **SPECIFICATIONS:** **Control Voltage:** 24 VAC (18-30 VAC), 60Hz **Line Voltage:** 115 VAC, 60Hz **Timing:** * **Pre-Purge:** 30 seconds * **Trial for Ignition:** 7 seconds * **Retries:** Two groups of two, 30 second delay within the group, and 3 minute delay between groups * **Lockout:** 1-hour * **Post-Purge:** 90, 120, 160 and 180 seconds Inputs: * **Power:** 24 VAC and COM * **Thermostat Interface:** R,W, Y, and G * **System Switches:** Vent pressure and limit switches (main and over-temperature switches in series) * **Flame Sensing** * **Heat Blower OFF Delay** (miniature slide switch set) Outputs: * **Spark** * **Gas Valve:** GV * **Inducer Draft Motor:** IDM * **Blower Motor:** FAN, COOL and HEAT speeds * **Electric air Cleaner:** EAC * **Humidifier Relay:** HUM * **Heat/Cool Relay:** H/C LED Indicators: * **Power, Green LED:** PWR * **Status, Green LED:** OK * **Flame Status, Yellow LED:** FLAME
