This item is Discontinued.

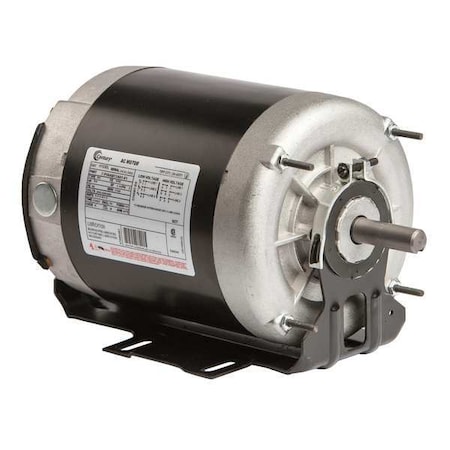

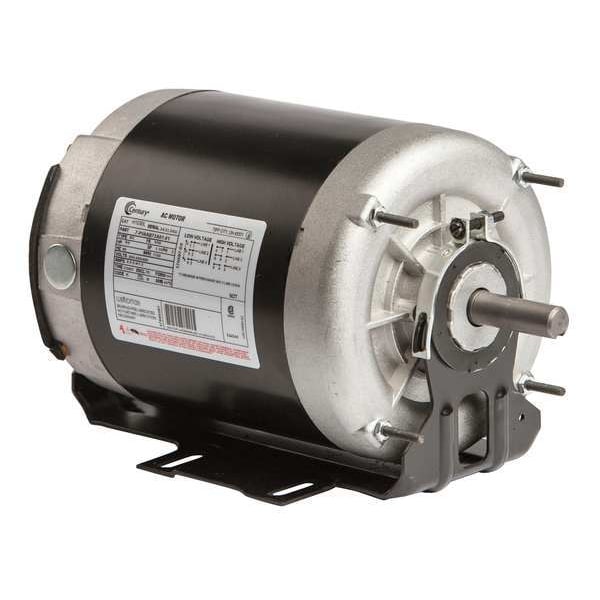

Century 3-Phase Belt Drive Motor, 3/4 HP, 56 Frame, 200-230/460V AC Voltage, 1,725 Nameplate RPM H1030L

This item is Discontinued.

Century

3-Phase Belt Drive Motor, 3/4 HP, 56 Frame, 200-230/460V AC Voltage, 1,725 Nameplate RPM (Discontinued)

Mfr # H1030L
Zoro # G3002964
Country of Origin Mexico
Category Belt Drive Motors
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
H1030L
Zoro #
G3002964
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Resilient Ring Dia.
2 1/2 in
Shaft Length
1 15/16 in
Length Less Shaft
9 1/2 in
Overall Length
11 7/16 in
Body Dia.
6 1/2 in
Shaft Diameter
5/8 in
Body Diameter
6.5 in
Resilient Ring Diameter
2 1/2 in
Frame Size
56

Details

Item
Belt Drive Motor
Motor Design
3-Phase
Motor Enclosure Design
Totally Enclosed Nonventilated
HP
3/4
No. of Speeds
1
RPM Range
1,701-1,800
Nameplate RPM
1,725
Voltage
200-230/460V AC
Frame
56
Motor Mounting Type
Cradle Base
Motor Thermal Protection
None
Motor Service Factor
1.15
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 200-230V AC, 200V AC
Phase
Three
Motor Application
HVAC/R
Motor Sub Application
Belt Drive Fan/Blower
Mounting Stud Pattern
4 1/8 in x 4 1/8 in
Standards
CSA, UL Recognized
Hz
60 Hz
Frame Material
Steel
Motor Bearings
Ball
Ring to Ring Center
9 in
Max. Ambient Temp.
104 Degrees F
Motor Frame Material
Steel
Ins. Class
B
Nominal Efficiency
76 %
Motor Mounting Position
All Angle
Duty
Continuous
Full Load Amps
2.3-2.4/1.2 A
Motor Shaft Rotation
CW/CCW
Weight
28 lb
Usable @ 208V
Yes
Extended Thru-Bolts
Yes
Usable @ 200V
Yes
Duty Cycle
Continuous
Application
Fan/Blower
Ambient Temperature - Maximum
40 Degrees C
Bearing Type
Ball
Full Load Current @ 60 Hz
2.3-2.4/1.2 A
Nameplate Service Factor @ 60 Hz
1.15
Motor Enclosure Type
Totally Enclosed Non-Ventilated
Product Type
Fan and Blower Motor
Insulation Class
B
Drive Type
Belt Drive
Number of Speeds
1
Mounting Position
All Angle
Frequency
60 Hz

Description

Fan and Blower Motor, Three Phase, Motor Design Three-Phase, 3/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 200-230/460V AC, 2.3-2.4/1.2 A Full Load Amps, 56 Frame, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Usable at 200V, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated, Motor Mounting Type Cradle Base, Stud
