This item is Discontinued.

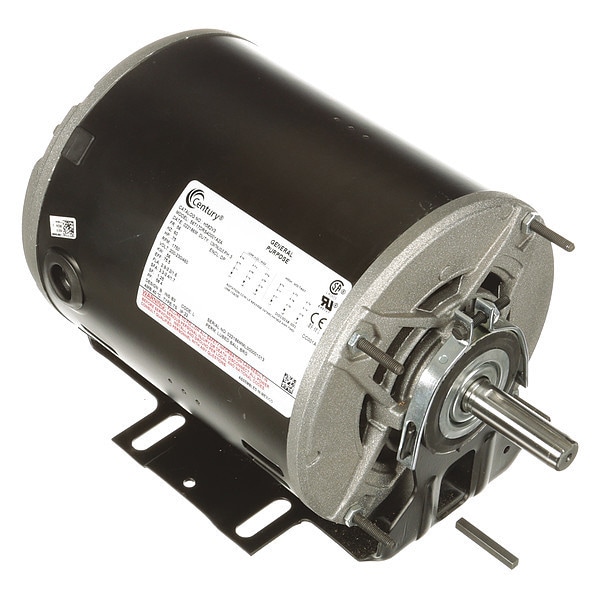

Century 3-Phase Belt Drive Motor, 3/4 HP, 56 Frame, 200-230/460V AC Voltage, 1,725 Nameplate RPM H582V3

3-Phase Belt Drive Motor, 3/4 HP, 56 Frame, 200-230/460V AC Voltage, 1,725 Nameplate RPM (Discontinued)

  • Mfr # H582V3
  • Zoro # G0198636
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
H582V3
Zoro #
G0198636
UPC #
786674074881
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Shaft Length
2 in
Length Less Shaft
9 in
Body Dia.
6 1/2 in
Manufacturers Warranty Length
1 yr
Overall Length
11 1/16 in

Details

Item
Belt Drive Motor
Motor Design
3-Phase
Motor Enclosure Design
Open Dripproof
HP
3/4
No. of Speeds
1
RPM Range
1,701-1,800
Nameplate RPM
1,725
Voltage
200-230/460V AC
Frame
56
Motor Mounting Type
Cradle Base
Motor Thermal Protection
None
Motor Service Factor
1.25
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 200-230V AC, 200V AC
Phase
Three
Motor Application
HVAC/R
Motor Sub Application
Belt Drive Fan/Blower
Hz
60 Hz
Motor Frame Material
Steel
Nominal Efficiency
75.5 %
Motor Bearings
Ball
Standards
CE, CSA, UL Recognized
Ins. Class
B
Motor Mounting Position
Horizontal
Full Load Amps
2.9-3.2/1.6 A
Motor Shaft Rotation
CW/CCW
Max. Ambient Temp.
104 Degrees F
Motor Shaft Design
Keyed
Duty
Continuous
Weight
24 lb
Usable @ 208V
Yes
Duty Cycle
Continuous
Usable @ 200V
Yes

Description

Fan and Blower Motor, Three Phase, Motor Design Three-Phase, 3/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 200-230/460V AC, 2.9-3.2/1.6 A Full Load Amps, 56 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Usable at 200V, 60 Hz Hz, Motor Service Factor 1.25, Motor Thermal Protection None, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base
