Century

Motor, PSC, 1/2 HP, 1075 RPM, 115V, 48Y, OAO

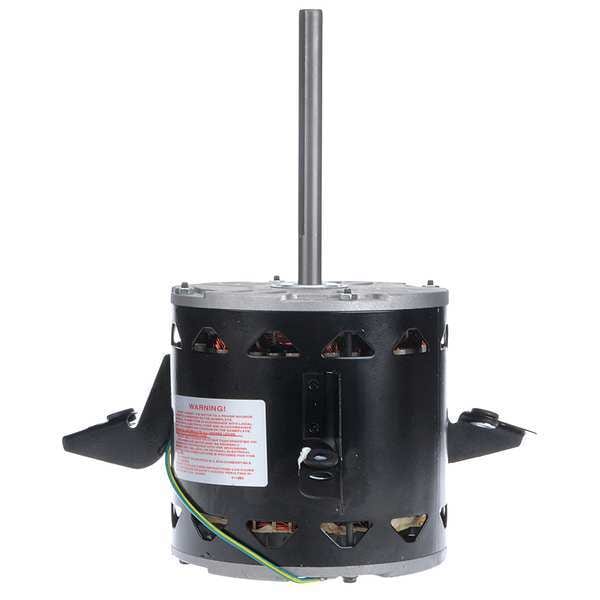

Century Motor, PSC, 1/2 HP, 1075 RPM, 115V, 48Y, OAO 754A
Tap to zoom
Hover or click to zoom
Feedback Help us improve our product images
$195.95
  • Ins. Class: B
  • Motor Design: Permanent Split Capacitor
  • Length Less Shaft: 5 1/2 in
See full product details
This item ships free.
Total: $195.95

Century #754A Specifications

  • Ins. Class: B
  • Motor Design: Permanent Split Capacitor
  • Length Less Shaft: 5 1/2 in
  • Hz: 60 Hz
  • Capacitor Required: 2MDV6
  • Motor Mounting Position: Horizontal
  • Motor Thermal Protection: Auto
  • Motor Mounting Type: T-Flex
  • Mounting Stud Pattern: 3-5/8 in x 3-5/8 in
  • HP: 1/2
  • Motor Sub Application: Room Air Conditioner
  • Shaft Length: 5 1/2 in
  • Motor Shaft Design: Flat
  • Nameplate RPM: 1,075
  • Item: Room Air Conditioner Motor
  • Voltage Compatibility: 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
  • Standards: UL Recognized
  • Motor Application: HVAC/R
  • Overall Length: 11 in
  • Application: Blowers, Fans and Air Circulators
  • Motor Bearings: Sleeve
  • Shaft Dia.: 1/2 in
  • Duty: Continuous
  • RPM Range: 1,001-1,100
  • Motor Shaft Rotation: CW/CCW
  • Motor Service Factor: 1
  • Motor Enclosure Design: Open Air-Over
  • Body Dia.: 5 5/8 in
  • Voltage: 115V AC
  • Frame: 48
  • Phase: Single
  • Max. Ambient Temp.: 40 Degrees C
  • No. of Speeds: 4
  • Full Load Amps: 8.9, 5.9, 4.2, 3.2
  • Number of Shafts: 1
  • Motor Frame Material: Steel
  • Mounting Holes: 4
  • Lead Length: 25 in
  • Stud Quantity: 4
  • Usable @ 208V: No
  • Weight: 21 lb
  • Usable @ 200V: No
  • Country of Origin (subject to change): Mexico
Feedback Help us improve our product information

Description

Room Air Conditioner Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2, 1/3, 1/4, 1/6 HP, Nameplate RPM 1,075, No. of Speeds 4, Voltage 115V AC, Full Load Amps 8.9, 5.9, 4.2, 3.2, 48 Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CW/CCW, Max. Ambient Temp. 40 Degrees C, Lead Length 25 in, Motor Enclosure Design Open Air-Over, Motor Mounting Type Flexible Arms
