This item is Discontinued.

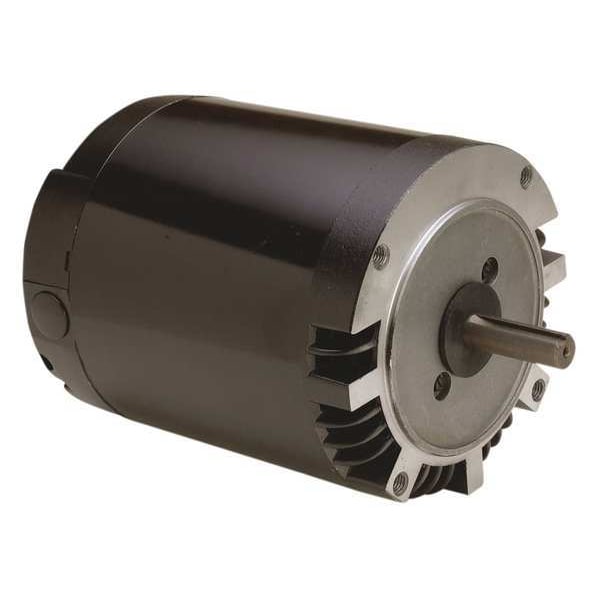

Century Motor, Split Ph, 1/2 HP, 1725,115V, 56CZ, ODP F263

This item is Discontinued.

Century

Motor, Split Ph, 1/2 HP, 1725,115V, 56CZ, ODP (Discontinued)

Mfr # F263
Zoro # G2689382
Country of Origin Mexico
Category Split-Phase Blower Motors
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
F263
Zoro #
G2689382
UPC #
-
Country of Origin
Mexico

Dimensions

Body Dia.
6 1/2 in
Shaft Dia.
5/8 in
Shaft Length
2 1/4 in
Length Less Shaft
9 3/8 in
Overall Length
11 5/8 in
Frame Size
56CZ
Mounting Stud Thread Size
3/8"-16
Body Diameter
6.5 in
Shaft Diameter
5/8 in

Details

Motor Enclosure Design
Open Dripproof
Motor Sub Application
Aeration Fan
Motor Shaft Rotation
CW/CCW
Motor Bearings
Ball
Full Load Amps
6.8/3.8 A
Ins. Class
B
Hz
60 Hz
Phase
Single
RPM Range
1,701-1,800
Capacitor Required
Capacitor Not Required
HP
1/2, 1/7
Standards
CSA Certified, UL Recognized
Voltage
115V AC
Max. Ambient Temp.
40 Degrees C
Item
C-Frame Motor
Motor Thermal Protection
Auto
Motor Shaft Design
Keyed
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Duty
Continuous
Application
C Face Vent, Designed for Use On Commercial and Industrial Ventilation Systems
Motor Service Factor
1.25
Motor Mounting Type
Face
Motor Design
Split-Phase
No. of Speeds
2
Motor Mounting Position
All Angle
Frame
56CZ
Motor Application
HVAC/R
Nameplate RPM
1,725
Motor Frame Material
Steel
Number of Shafts
1
Weight
28 lb
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
Stud Quantity
4
Mounting Holes
(4) 3/8 in-16
Duty Cycle
Continuous
Mounting
Face
Number of Speeds
2
Drive Type
Belt Drive
Motor Enclosure Type
Open Drip Proof
Full Load Current @ 60 Hz
6.8/3.8 A
Frequency
60 Hz
Insulation Class
B
Product Type
C-Frame Motor
Sub Application
General Purpose
Mounting Position
All Angle
Frame Material
Steel
Bearing Type
Ball
Ambient Temperature - Maximum
40 Degrees C
Shaft Design
Keyed
Nameplate Service Factor @ 60 Hz
1.25

Description

C-Frame Motor, Single Phase, Motor Design Split-Phase, 1/2 hp, 1/7 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 2, Voltage 115V AC, 6.8/3.8 A Full Load Amps, 56CZ Frame, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1.25, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type C-Face, Motor Frame Material Steel
