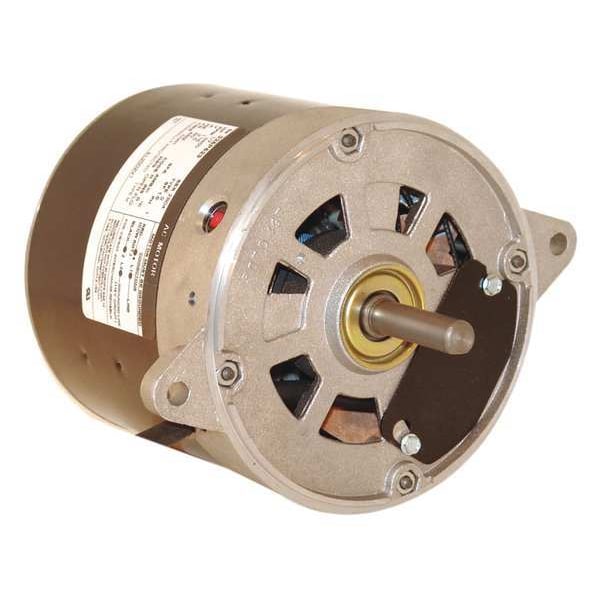

Century Oil Burner Motor, 1/3 HP, 1725,115 V, 48N OL2034

This item is Discontinued.

Century

Oil Burner Motor, 1/3 HP, 1725,115 V, 48N (Discontinued)

Mfr # OL2034
Zoro # G0386687
Country of Origin Mexico
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
OL2034
Zoro #
G0386687
UPC #
-
Country of Origin
Mexico
Item
Oil Burner Motor
Motor Design
Split-Phase
Motor Enclosure Design
Open
HP
1/3
Nameplate RPM
1,725
Frame
48N
Voltage
115V AC
Motor Mounting Type
Face
Motor Shaft Rotation
CW/CCW
Motor Application
HVAC/R
Standards
CSA Certified, UL Recognized
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Service Factor
1
Hz
60 Hz
Motor Flange Type
Ventilated
RPM Range
1,701-1,800
Max. Ambient Temp.
40 Degrees C
Motor Bearings
Sleeve
Motor Sub Application
Oil Burner
Ins. Class
B
Motor Thermal Protection
Manual
Motor Flange Material
Aluminum
Phase
Single
Full Load Amps
4.3 A
Ambient Temperature
40 Degrees C
Motor Shaft Design
Flat
Features
Reversible Rotation
No. of Speeds
1
Output Watts
250 W
Motor Frame Material
Steel
Duty Cycle
Continuous
Usable @ 200V
Not Usable at 200V
Motor Mounting Position
All Angle
Usable @ 208V
Not Usable at 208V
Weight
18 lb
Drive Type
Direct Drive
Number of Speeds
1
Nameplate Service Factor @ 60 Hz
1
Full Load Current @ 60 Hz
4.3 A
Insulation Class
B
Duty
Continuous
Wattage
250 W
Sub Application
Oil Burner
Shaft Design
Flat
Ambient Temperature - Maximum
40 Degrees C
Frame Material
Steel
Bearing Type
Sleeve
Frequency
60 Hz
Product Type
Oil Burner Motor
Motor Enclosure Type
Open

Dimensions

Shaft Length
2 in
Shaft Dia.
1/2 in
Body Dia.
6 3/4 in
Bolt Circle Dia.
7 1/4 in
Overall Length
8 11/16 in
Length Less Shaft
6 11/16 in
Shaft Diameter
1/2 in
Bolt Circle Diameter
7 1/4 in
Body Diameter
6.8 in
Frame Size
48N
Wire Rope Length
8 11/16 in
Length
8 11/16 in

Description

Oil Burner Motor, Single Phase, Motor Design Split-Phase, 1/3 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115V AC, 4.3 A Full Load Amps, 48N Frame, Output Watts 250 W, 60 Hz Hz, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Manual, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open, Motor Mounting Type Face, Motor Frame Material Steel, Motor Mounting Position All Angle
