Dart Controls

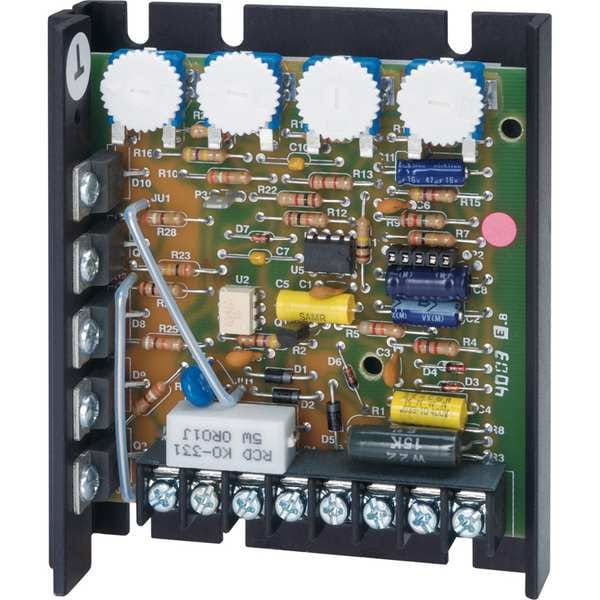

DC Speed Control, 90/180VDC, 5A
- Zoro #: G0491547
- Mfr #: 125DV-C-K
Hover or click to zoom Tap to zoom
Key Features
- Item: DC Speed Control
- Enclosure: Chassis
- Max. Amps: 5 A
- Voltage Output: 90/180V DC
- Speed Range: 50:1
- Rotation: Single Direction
- External Switches: None
- AC Input Voltage: 120/240V AC
$148.45
Subtotal: $148.45
Sign In For Free Shipping On $50+ Orders
30-Day Returns
125 U.S.-Based Customer Service Agents
Dart Controls #125DV-C-K Specifications
- Zoro #: G0491547
- Mfr #: 125DV-C-K
- Item: DC Speed Control
- Enclosure: Chassis
- Max. Amps: 5 A
- Voltage Output: 90/180V DC
- Speed Range: 50:1
- Rotation: Single Direction
- External Switches: None
- AC Input Voltage: 120/240V AC
- DC Speed Control: SCR
- Accepts Tach Feedback: Yes
- Linear Acceleration: Fixed 6 sec
- HP @ Lower Volts: 1/8 to 1/2
- For Use With: Material Handling, Laboratory, Food Processing, Pump, Fan/Blower, Conveyor, Machine Tool, DC Motor and Spooling Applications
- Includes: Speed Potentiometer Knob and Dial Plate
- Height: 4.25 in
- Operating Temp.: -10 Degrees to 45 Degrees C
- Linear Deceleration: Fixed 6 sec
- HP @ Higher Volts: 1/4 to 1
- Speed Regulation: +/-0.5% with Tach Feedback, +/-1% with Armature Voltage Feedback
- Standards: CE Certified, cULus Recognized, RoHS
- Depth: 1.3 in
- IR Compensation: Adjustable
- Mount Type: Chassis
- Shunt Wound Volts: 100/200V DC
- Width: 3.63 in
- Dynamic Braking: No
- Follower Circuit: No
- Current/Torque Limit: Adjustable
- Enclosure Type: Open
- Overall Width: 3.63 in
- Overall Depth: 1.3 in
- Overall Height: 4.25 in
- Higher Voltage Motor Output Power: 1/4 to 1 hp
- Series: Series 125
- Maximum Current: 5.5 A
- Maximum Linear Acceleration: 6 sec
- Maximum Linear Deceleration: 6 sec
- Shunt Wound Voltage: 100/200V DC
- Operating Temperature: -10 Degrees to 45 Degrees C
- Lower Voltage Motor Output Power: 1/8 to 1/2 hp
- Country of Origin (subject to change): United States
Description
DC Speed Control, DC Speed Control SCR, Lower Voltage Motor Output Power 1/8 to 1/2 hp, AC Input Voltage 120/240V AC, Voltage Output 90/180V DC, Speed Range 50:1, Rotation Single Direction, External Switches None
