Dayton

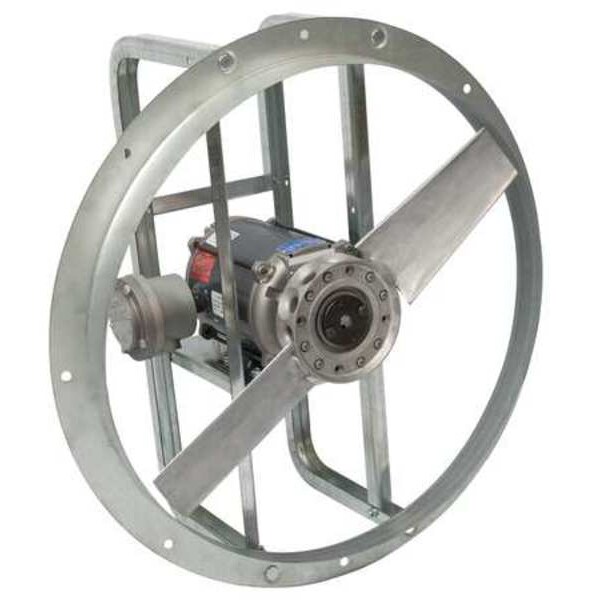

Exhaust Fan, 24 In, 3 Phase, Haz Location

product price: $1,129.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type Direct Drive, Hazardous Location
  • Blade Dia. 24 in
  • Fan Voltage 208-230/460V AC
  • Exhaust/Supply Fan Motor HP 1/2 hp
  • Drive Package With Motor Included No
See all product information

Product Information

Dimensions

Blade Dia. 24 in
Flange Depth (In.) 1 7/8 in
Inside Dia. (In.) 24 1/2 in
Dimension C (In.) 2 in
Max. Depth (In.) 13 1/2 in
Outside Dia. (In.) 28 1/4 in
Venturi Depth (In.) 2 in
Dimension D (In.) 24 1/2 in
Dimension B (In.) 13 1/2 in
Dimension A (In.) 28 1/4 in
Height (In.) 28 1/4 in
Width (In.) 28 1/4 in
Shaft Dia. (In.) 5/8 in
Venturi Depth 2 in
Blade Diameter 24 in
Overall Height 28 1/4 in
Overall Width 28 1/4 in
For Cut-Out Width 25 1/2 in
For Cut-Out Diameter 24 1/2 in
Flange Depth 1 7/8 in
Venturi Diameter 24 1/2 in
Manufacturer Warranty Length 1 yr
Overall Diameter 28 1/4 in
Shaft Diameter 5/8 in
Overall Depth 13 1/2 in

Details

Item Ring Exhaust Fan
Exhaust/Supply Fan Item Exhaust Fan
Type Direct Drive, Hazardous Location
Fan Voltage 208-230/460V AC
Exhaust/Supply Fan Motor HP 1/2 hp
Drive Package With Motor Included No
CFM @ 0.000-In. SP 5,669 cfm
Sones @ 0.000-In. SP @ 5 Ft. 26
Full Load Amps 1.8-2/1
Frame Material Steel
Motor Enclosure Totally Enclosed Fan Cooled
Drive Package Included No
CFM @ 0.500-In. SP 1,906 cfm
Phase 3
Propeller Material Aluminum
Mounting Position Vertical or Horizontal
Agency Compliance UL and cUL Listed, AMCA, CSA Certified Motor
Hz 60
For Use With NEC Class I, Div 1, Group C and D; NEC Class II, Div 1, Group F and G
Bearing Type Ball
Number of Blades 2
CFM @ 0.250-In. SP 4,010 cfm
Frame Finish Zinc Plated
Motor Insulation Class B
Motor RPM 1,750 RPM
Max. Ambient Temp. (F) 104 Degrees F
CFM @ 0.375-In. SP 2,963 cfm
Mounting Holes O.C. (In.) 26 7/8 in
Watts 373 W
CFM @ 0.125-In. SP 4,946 cfm
Includes Hazardous Location Motor
Hazardous Location Class Class I, Div 1, Group C and D; Class II, Div 1, Group F and G
Motor Type 3-Phase
Standards AMCA, C-UL Listed, CSA, UL Listed
Method of Construction Stamped
Guard Type None
Housing Finish Galvanized
Fan Style Ring
Maximum Ambient Operating Temperature 104 Degrees F
Exhaust Airflow @ 0.375 in SP 2,963 cfm
Motor Speed 1,750 RPM
Assembled Assembled
Includes Motor Yes
Frequency 60 Hz
Wattage 373 W
Housing Material Steel
Maximum Airflow 5,569 cfm
Mounting Orientation Horizontal, Vertical
Maximum Noise Level 26 sones
Exhaust Airflow @ 0.250 in SP 4,010 cfm
Number of Fans 1
Exhaust Airflow @ 0.000 in SP 5,669 cfm
Noise Level @ 0.125 in SP @ 5 ft 25 sones
Blade Material Aluminum
Maximum Inlet Temperature 104 Degrees F
Ventilation Type Exhaust
Includes Grill No
Full Load Current 1.8 A
Drive Type Direct Drive
Ring-Mount Style Flange
Vent Design Ductless
Number of Speeds 1
Motor Horsepower 1/2 hp
Exhaust Airflow @ 0.125 in SP 4,946 cfm
Noise Level @ 0.000 in SP @ 5 ft 26 sones
Includes Dehumidistat No
Nameplate Voltage 208-230/460V AC
Exhaust Airflow @ 0.500 in SP 1,906 cfm
Speed Controllable No
Voltage 208-230/460

Description

Ring Exhaust Fan, Assembled Assembled, Blade Diameter 24 in, Blade Material Aluminum, Drive Type Direct Drive, Duct Diameter Not Applicable, Exhaust Airflow @ 0.000 in SP 5,669 cfm, For Cut-Out Width 25 1/2 in, Frame Finish Zinc Plated, Frame Material Steel, Guard Type None, Hazardous Location Class Class I, Div 1, Group C and D; Class II, Div 1, Group F and G, Housing Material Steel, Housing Finish Galvanized, Includes Hazardous Location Motor, Includes Dehumidistat No

Restrictions

  • This item has been restricted from sale in the following states: CA, NJ
