  9. Exhaust Fan, 48In, 230V
Shop All Agricultural Fans
Dayton

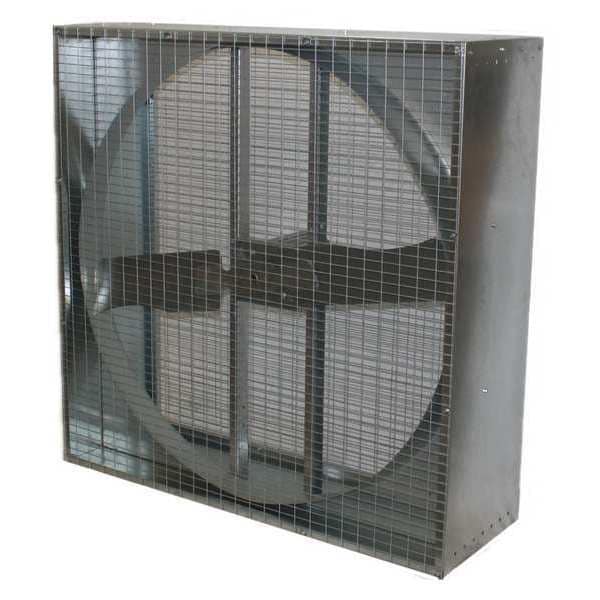

Exhaust Fan, 48In, 230V

product price: $836.99
/ea
Item requires special delivery charges. A $90.00 per item surcharge will be applied.
Free 30-Day Returns

Key Features

  • Type Direct Drive, Assembled
  • Propeller Dia. (In.) 48 in
  • CFM @ 0.000-In. SP 18,926
  • HP 1 hp
  • Voltage 115/230
See all product information

Product Information

Dimensions

Propeller Dia. (In.) 48 in
Shaft Dia. (In.) 1 in
Max. Depth (In.) 17 in
Venturi Depth (In.) 4 1/2 in
Dimension D (In.) 3/8 in
Venturi Clearance Dia. (In.) 5/16 in
Height (In.) 52 1/8 in
Width (In.) 52 1/8 in
Dimension A (In.) 52 1/8 in
Mesh Size 1 in x 2 in
Dimension B (In.) 17 in
Overall Height 52 1/8 in
Overall Width 52 1/8 in
Venturi Depth 4 1/2 in
Overall Depth 17 in
For Cut-Out Width 52 7/8 in
Shaft Diameter 1 in
Blade Diameter 48 in
For Cut-Out Height 53 in

Details

Item Agricultural Exhaust Fan
Type Direct Drive, Assembled
CFM @ 0.000-In. SP 18,926
HP 1 hp
Voltage 115/230
Opening Required H (In.) 52 7/8 in
Opening Required W (In.) 52 7/8 in
Fan RPM 857
CFM/Watt @ 0.050-In. SP 17.8
Hz 60
CFM/Watt @ 0.150-In. SP 13.7
CFM/Watt @ 0.100-In. SP 15.8
CFM @ 0.150-In. SP 14,256
Frame Material Steel
Number of Blades 2
Agency Compliance Motor is UL recognized for USA & Canada.
Motor Enclosure Totally Enclosed Air Over
Max. Ambient Temp. (F) 104 Degrees F
Mounting Location Vertical
CFM @ 0.100-In. SP 15,973
Phase 1
CFM/Watt @ 0.000-In. SP 19.9
CFM @ 0.050-In. SP 17,481
Propeller Material Galvanized Steel
Bearing Type Permanently Lubricated Sealed Ball
Motor RPM 850
Full Load Amps 11.0/5.5
Includes Mesh Screen
Motor Insulation Class B
Motor Type 3-Phase
Frame Finish Galvanized
Standards C-UL Listed, UL Listed
Guard Material Steel
Maximum Ambient Operating Temperature 104 Degrees F
Housing Finish Galvanized
Exhaust Airflow @ 0.100 in SP 15,973 cfm
Assembled Assembled
Wattage 1,120 W
Guard Finish Zinc Plated
Motor Horsepower 1 hp
Fan Style Box
Maximum Noise Level 37 sones
Speed Controllable No
Noise Level @ 0.100 in SP @ 5 ft 35 sones
Mounting Orientation Vertical
Drive Type Direct Drive
Guard Type Exhaust
Noise Level @ 0.000 in SP @ 5 ft 37 sones
Number of Fans 1
Ventilation Type Exhaust
Full Load Current 11 A
Includes Motor Yes
Includes Dehumidistat No
Motor Speed 850 RPM
Maximum Airflow 18,926 cfm
Number of Speeds 1
Blade Material Steel
Housing Material Steel
Electrical Connection Hardwired
For Maximum Wall Thickness 8 in
For Minimum Wall Thickness 6 in
Nameplate Voltage 115/230V AC
Exhaust Airflow @ 0.000 in SP 18,926 cfm
Frequency 60 Hz

Description

Agricultural Exhaust Fan, Assembled Assembled, Blade Diameter 48 in, Blade Material Steel, Drive Type Direct Drive, Exhaust Airflow @ 0.000 in SP 18,926 cfm, For Cut-Out Height 53 in, For Cut-Out Width 52 7/8 in, For Maximum Wall Thickness 8 in, For Minimum Wall Thickness 6 in, Frame Finish Galvanized, Frame Material Steel, Guard Finish Zinc Plated, Guard Material Steel, Guard Type Exhaust, Housing Material Steel, Housing Finish Galvanized, Includes Mesh Screen, Includes Dehumidistat No
