Shop DAYTON

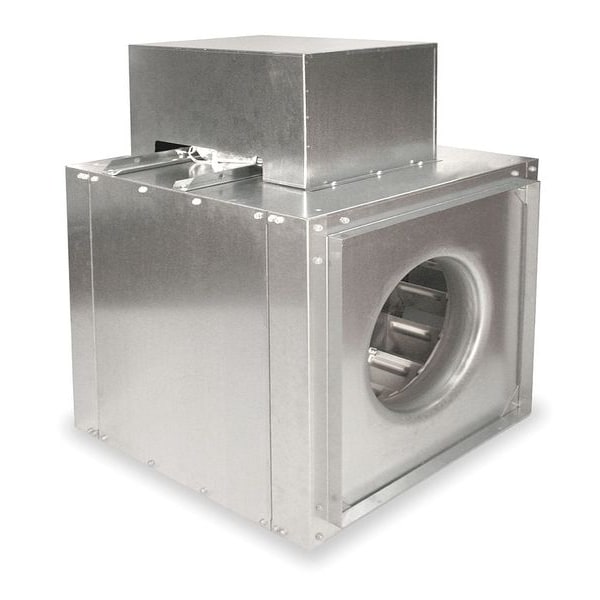

InLine Blower, 11 1/2 In, Less Drive Pkg

  • Mfr # 2RB89

  • Zoro # G1969231

product price:
$
1,313.99
/ea
Free Shipping & Returns

Key Features

Wheel Dia. (In.)
11 1/2 in
Motor HP
Not Available
Outlet Width (In.)
13 7/8 in
Width (In.)
17 in
Shaft Dia. (In.)
3/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2RB89
Zoro #
G1969231
UPC #
190735229767
Country of Origin
United States

Dimensions

Wheel Dia. (In.)
11 1/2 in
Outlet Width (In.)
13 7/8 in
Width (In.)
17 in
Shaft Dia. (In.)
3/4 in
Inlet Dia. (In.)
7 3/4 in
Inlet Height (In.)
13 7/8 in
Max. Motor Height (In.)
12 1/2 in
Dimension E (In.)
17 3/4 in
Height (In.)
17 in
Dimension D (In.)
1 1/2 in
Outlet Dia. (In.)
7 3/4 in
Outlet Height (In.)
13 7/8 in
Dimension C (In.)
13 7/8 in
Inlet Width (In.)
13 7/8 in
Dimension F (In.)
13 in
Dimension B (In.)
21 in
Dimension A (In.)
17 1/8 in
Dimension G (In.)
13 1/4 in
Max. Depth (In.)
21 in
Overall Width
17 in
Overall Height
13 7/8 in
Wheel Bore Diameter
3/4 in
Outlet Diameter
7 3/4 in
Overall Depth
21 in
Outlet Duct Connection Height
13 3/4 in
Manufacturer Warranty Length
1 yr
Wheel Diameter
11 1/2 in
Inlet Diameter
7 3/4 in
Shaft Diameter
3/4 in
Outlet Duct Connection Width
13 7/8 in
Inlet Duct Connection Width
13 7/8 in
Inlet Duct Connection Height
13 7/8 in

Details

Motor HP
Not Available
Agency Compliance
UL And C-UL Listed
Bearing Type
Sealed Pillow Block
Wheel Material
Aluminum
Includes
Access Panels
Item
In-Line Duct Blower
Max. Inlet Temp. (Deg. F)
160 Degrees F
Mounting Position
Vertical/Horizontal
Type
Belt Drive Centrifugal, Less Drive Package
Stock No.
2RB89
Housing Material
Steel
Wheel Type
Backward-Inclined
Drive Type
Belt Drive
Standards
AMCA Certified, UL/cUL 705
Application
Designed for Indoor Clean Air Applications
Features
Bearing Cover and Motor Cover Included to Help in Lengthening Service Life, Collars to Simplify Duct Connections, and Panels on Each Side to Provide Quick Access to Internal Fan Components
For Location
Indoor
Minimum Airflow
772 cfm
Maximum Airflow
2,103 cfm
Speed Controllable
No
Maximum Static Pressure
2 in wc
For Ventilation Type
Exhaust, Supply, Make-Up, Return
Market
Commercial, Industrial
Maximum Fan Speed
2,556 RPM
Assembly
Unassembled
For Air Type
Clean
Minimum Motor Speed
1,609 RPM
Minimum Motor Horsepower
1/4 hp
Mounting Orientation
Multiposition
Maximum Motor Horsepower
1 hp
Includes Drive Package
No
Maximum Inlet Air Temperature
160 Degrees F
Housing Material Finish
Galvanized

Description

In-Line Duct Blower, Wheel Type Backward-Inclined, Drive Type Belt Drive, Includes Drive Package No, Assembly Unassembled, Wheel Diameter 11 1/2 in, Minimum Airflow 772 cfm, Maximum Airflow 2,103 cfm, Maximum Static Pressure 2 in wc, Maximum Inlet Air Temperature 160 Degrees F, Shaft Diameter 3/4 in, Bearing Type Sealed Pillow Block, Wheel Material Aluminum, Housing Material Steel, Inlet Diameter 7 3/4 in, Outlet Diameter 7 3/4 in, Outlet Duct Connection Height 13 3/4 in
