Dayton

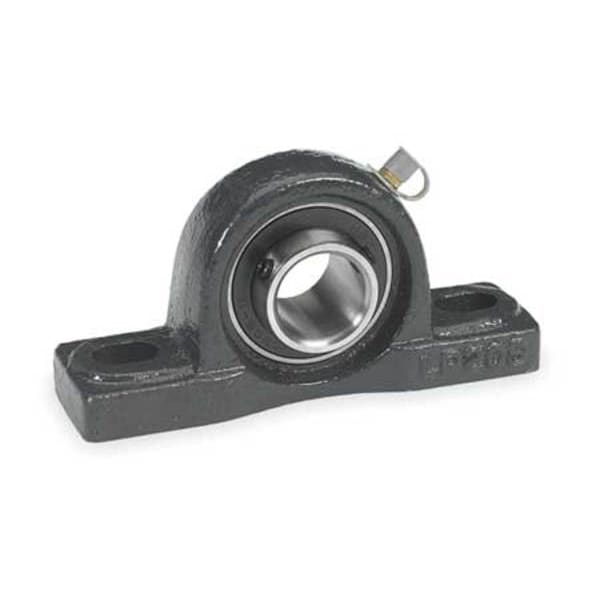

Pillow Block Bearing, Ball, 1" Bore

original price: $35.55
7% off
new price: $32.85
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Bearing Insert Type Radial Ball
  • Bore Dia. 1 in
  • Shaft Locking Type Set Screws
  • Bearing Housing Material Type Cast Iron
  • Bearing Insert Material Alloy Steel
See all product information

Product Information

Dimensions

Bore Dia. 1 in
Overall Width 1.5 in
Dimension G 1 1/2 in
Bolt Size 3/8 in
Dimension E 1/2 in
Overall Height 2.75 in
Dimension A 1 7/16 in
Dimension B 2 25/32 in
Overall Length 5.5 in
Dimension D 4 1/8 in
Dimension C 5 1/2 in
Center Height 1 7/16 in
Bore Diameter 1 in
Mounting Bolt Size 3/8 in
Mount Hole Center-to-Center Length 4 1/8 in

Details

Bearing Insert Type Radial Ball
Shaft Locking Type Set Screws
Bearing Housing Material Type Cast Iron
Bearing Insert Material Alloy Steel
Bolt Hole Center-to-Center 4 1/8 in
Mounting Surface to Shaft Center 1 7/16 in
Series Air Handling Standard Duty
Number of Bolts 2
Dynamic Load Capacity 3,146 lb
Includes (2) Set Screws, Oiler Cap
Housing Material Cast Iron
Locking Type Set Screw
Static Load Capacity 1,771 lb
Finish Painted
Bearing Lubrication Chevron SRI-2 or NLGI #2 Equivalent
Item Pillow Block Bearing
Temp. Range -20 Degrees to 200 Degrees F
Housing Material Finish Painted
Bearing Material Grade 52100
Bore Type Cylindrical
Closure Double Sealed
System of Measurement Inch
Static Radial Load Capacity 1,771 lbf
Lubricant Material NGLI #2 Equivalent
Mount Type Bolt-Through
Dynamic Radial Load Capacity 3,146 lbf
Minimum Temperature -20 Degrees F
Number of Mount Holes 2
Maximum Temperature 200 Degrees F
Split Housing Not Split

Description

Pillow Block Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 in, Bore Type Cylindrical, Center Height 1 7/16 in, Closure Double Sealed, Housing Material Cast Iron, Lubricant Material NGLI #2 Equivalent, Maximum Temperature 200 Degrees F, Minimum Temperature -20 Degrees F, Mount Hole Center-to-Center Length 4 1/8 in, Mount Type Bolt-Through, Number of Mount Holes 2, Overall Height 2.75 in, Overall Length 5.5 in, Overall Width 1.5 in
